SPECIFICATIONS



Brand Name: ANNKE





High Definition: 5.0 Megapixels

Supported Operating Systems: Windows 7

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Lens (mm): 2.8mm

Style: Turret Camera

Connectivity: IP/Network Wired

Installation: Ceiling

Minimum Illumination(Lux): 0.01

Megapixels: 5MP

Video Compression Format: H.265

IR Distance(m): Up to 100ft/30m

Certification: CE

Certification: FCC

Color: WHITE

Alarm Action: Email Photo

Alarm Action: Local Alarm

is_customized: No

Model Number: I91BM-C800

Special Features: Waterproof / Weatherproof

TF Card: 128G TF Card

Audio Output: None

Sensor: CMOS

Sensor Brand: Sony

Power Supply: With POE

Image sensor: 1/3" Progressive Scan CMOS

Wide Dynamic Range: 120 dB WDR

Audio Input/Output: Built-in Microphone

Housing: Plastic & Metal

Day/Night Switch: Day, Night, Auto, Schedule

Audio Input: Built-in Microphone

Feature 1: camera annke

Feature 2: cctv camera

Feature 3: surveillance camera

Feature 4: CCTV camera 8MP

Feature 5: annke 4k

Feature 6: security camera poe

Feature 7: camera surveillance

Feature 8: 8mp poe ip camera

Supplement Light Range: Up to 30 m

Angle of View: Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

Supplement Light Type: Smart Dual-Light, IR, White Light

Indoor/Outdoor Use: Indoor/Outdoor Use

Interface Protection: IP67



Capture Clear Night Detail by Smart Dual Light

Default smart dual light mode in night, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear color image. In addition, you can also choose full infrared or full white light mode. Infrared fill light is up to 30 m, up to 20 m white light distance for bright night imaging.

Ultra-clear Video in 3K with 16:9 Image Scale

With 1/3" Progressive Scan BSI CMOS sensor, this camera can deliver amazing 3K (3072x1728@20fps) videos with all the subtle details that are true to life. 16:9 aspect ratio effect is better than traditional 4:3, more suitable for mainstream display ratio.

Smart Human & Vehicle Detection, Brings 99% Accurate Alerts

Using an intelligent algorithm based on a deep learning platform, the motion detection 2.0 camera will detect people and vehicle, which helps reduce 99% unwanted motion alerts triggered by animals, or random inanimate objects.

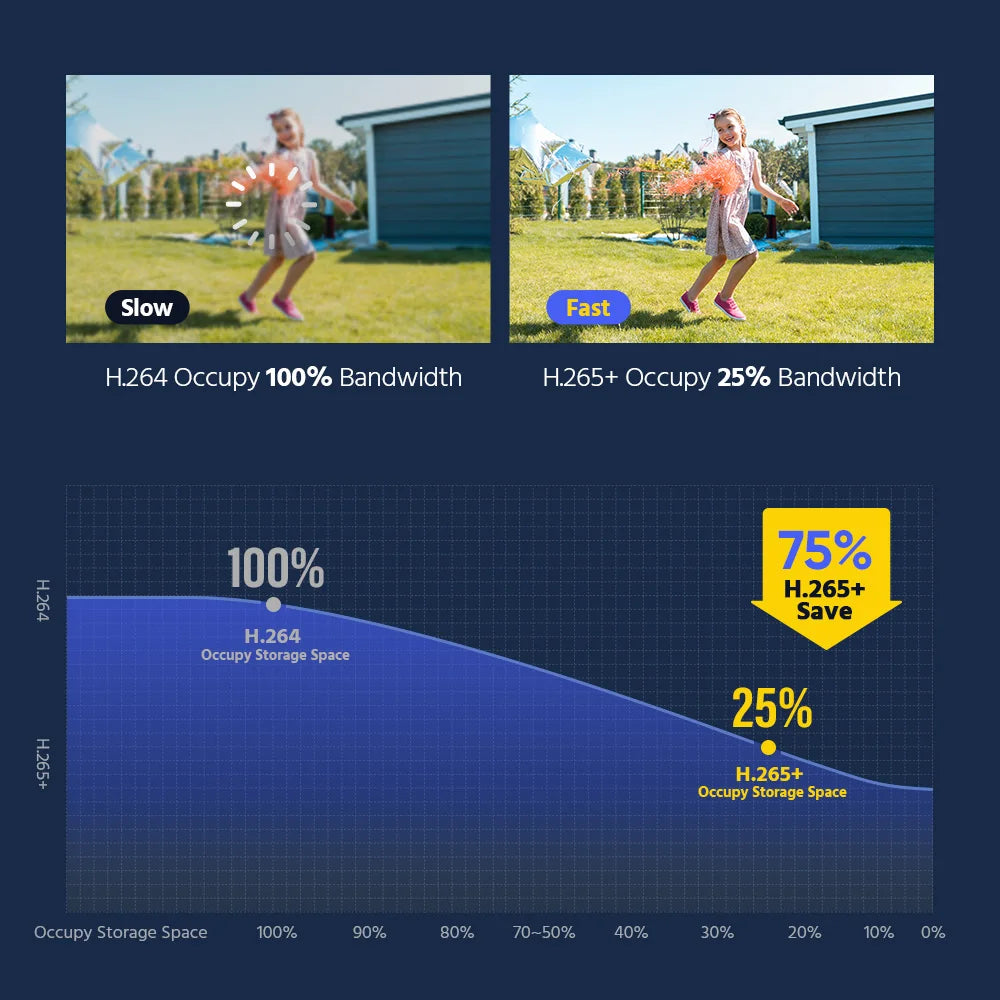

H.265+/H.265 to Save Storage Space

The new generation of H.265+/H.265 video coding technology can save bandwidth while providing clear and delicate images. H.265 videos require only 50% of the storage space required for traditional H.264 videos at the same pixel and data rate, so you save half the storage space.

Wide Viewing Angle to Cover More

A carefully crafted 2.8mm fixed lens with a max aperture of F1.6 generates striking visuals owing to the 116° viewing angle. With such a wide field of view you will have no problem keeping what you care about in your sights.

4 Top-of-the-Line Image Enhancement Technologies

The IP camera adopts 4 incredible image enhancement technologies – 120 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

IP67 Weatherproof – Built for Extreme Weather

IP67 rated, this weatherproof security cameras can endure anything from torrential downpours to freezing snowstorms. Not only does it ensure protection against ingress of dust and moisture, it can also withstand extreme cold or heat, continuing to operate in temperatures as low as –30 °C / –22 °F and as high as 60 °C / 140 °F.

I51EH:

Camera	Image Sensor	1/3" Progressive Scan CMOS
	Max resolution	3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
	Main Stream	50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720) 60 Hz:20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
	Substream	50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360) 60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
	Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
	Video Bitrate	32 Kbps - 6 Mbps
	Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
	Audio Input	Built-in Microphone, record with audio
	Lens	2.8 mm
	Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
	Angle of View	Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
	Supplement Light Type	Smart Dual-Light, IR, White Light
	Supplement Light Range	IR: up to 30 m, wite Light: up to 20 m
	Motion detection 2.0	Supoort, include Human & Vehicle detection
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120 dB WDR
	Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
	API	Open Network Video Interface Version 18.12
	Region of Interest (ROI)	1 fixed region for main stream
	Privacy Mask	4 programmable polygon privacy masks
	General Function	Mirror,rotate,password protection, remote access
	Ethernet	1 RJ45 10 M/100 M self-adaptive Ethernet port
General	Housing	Metal & Plastic
	Color	Black
	Storage	Built-in microSD/SDHC/SDXC Slot, up to 256 GB
	Hardware Reset	Yes
	Operating Power	DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
	Operating Temperature	-22 °F – 140 °F/-30 °C – 60 °C
	Indoor/Outdoor Use	Indoor/Outdoor
	Interface Protection	IP67
	Dimension (L X W X H)	Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
	Weight	Approx. 340 g (0.7 lb.)
