ANNKE Smart HomeCamera Security Out Doors
ANNKE Smart HomeCamera Security Out Doors
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: ANNKE
High Definition: 8.0 Megapixels
Supported Operating Systems: No
Lens (mm): 2.8mm
Style: Bullet Camera
Connectivity: IP/Network Wired
Installation: Ceiling
Installation: Side
Installation: Normal
Installation: Wall Mounted
Installation: Pendant Mount
Installation: Vertical Pole Mount
Installation: Corner Mount
Minimum Illumination(Lux): 0.01
Scene: Indoor and outdoor
Color Night Vision: YES
Megapixels: 8MP
Video Compression Format: H.264
Video Compression Format: H.265
IR Distance(m): 30M
Color: WHITE
Power Mode: Battery Powered
Alarm Action: FTP Photo
Alarm Action: telefon Alarm
Alarm Action: Email Photo
Alarm Action: Local Alarm
Movement Range(Tilt): 0°-360°
Model Number: I91DW/I91DX
Supported Mobile Systems: Android
Supported Mobile Systems: IOS
AI Functions: Human Detection
IP Rating: IP67
Special Features: Waterproof / Weatherproof
TF Card: None
Power Supply(V): DC12V
Audio Output: Two Way Audio
Sensor: CMOS
Shell Material: Plastic
Power Supply: Normal
Viewing Angle : 180°
Movement Range(Pan): 0°-360°
Rechargeable Battery: Built in
type 1: security protection
type 2: Surveillance cameras
type 3: Surveillance camera
type 4: camera video surveillance
type 5: camera security
Image Parameters Switch: Yes
Indoor/Outdoor: Indoor/Outdoor
6MP Lens: Dual lens: 2.8 mm
Dual Lens: 180° Wide Viewing Angle
type 6: 8MP Smart POE Camera
type 7: Smart POE Camera
type 8: dual camera
type 9: outdoor security camera
type 10: security camera
type 11: outdoor video camera
type 12: security camera
type 13: rear view camera
type 13: camera 180 yours
type 14: cctv cameras
type 15: outdoor poe camera

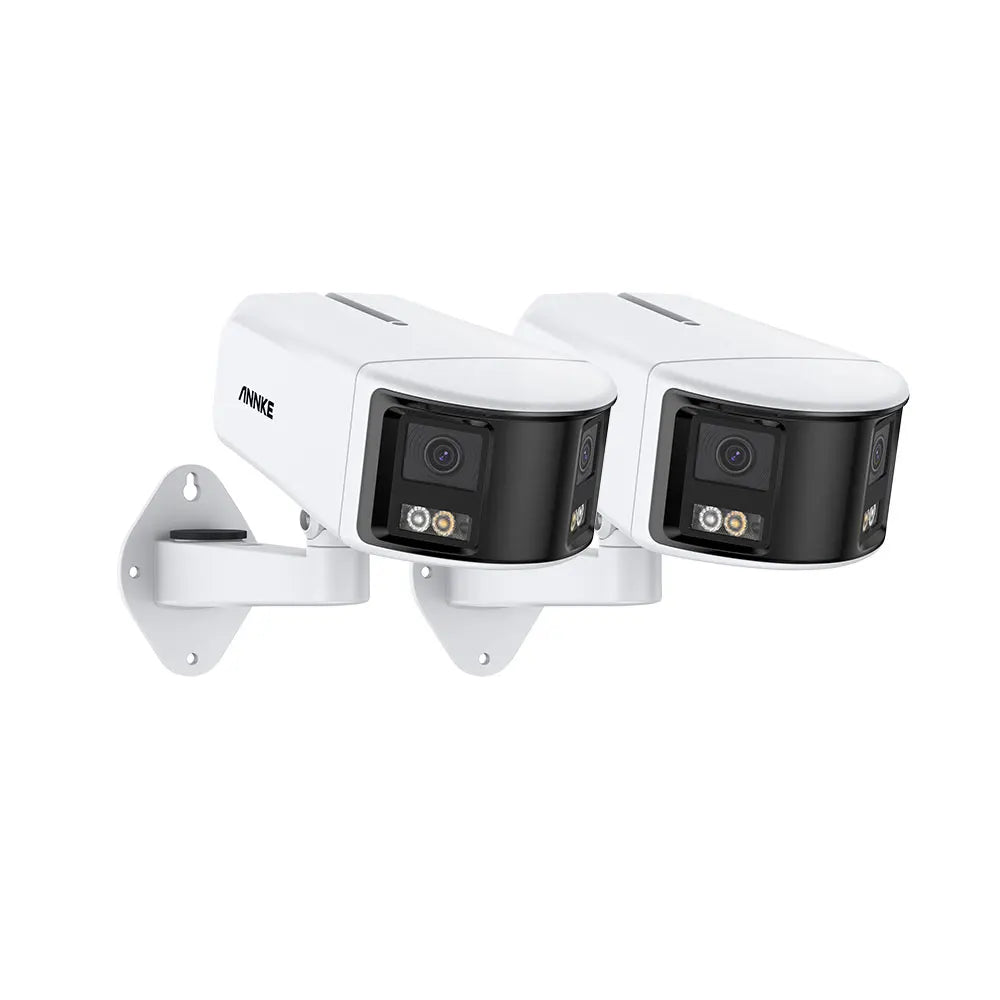

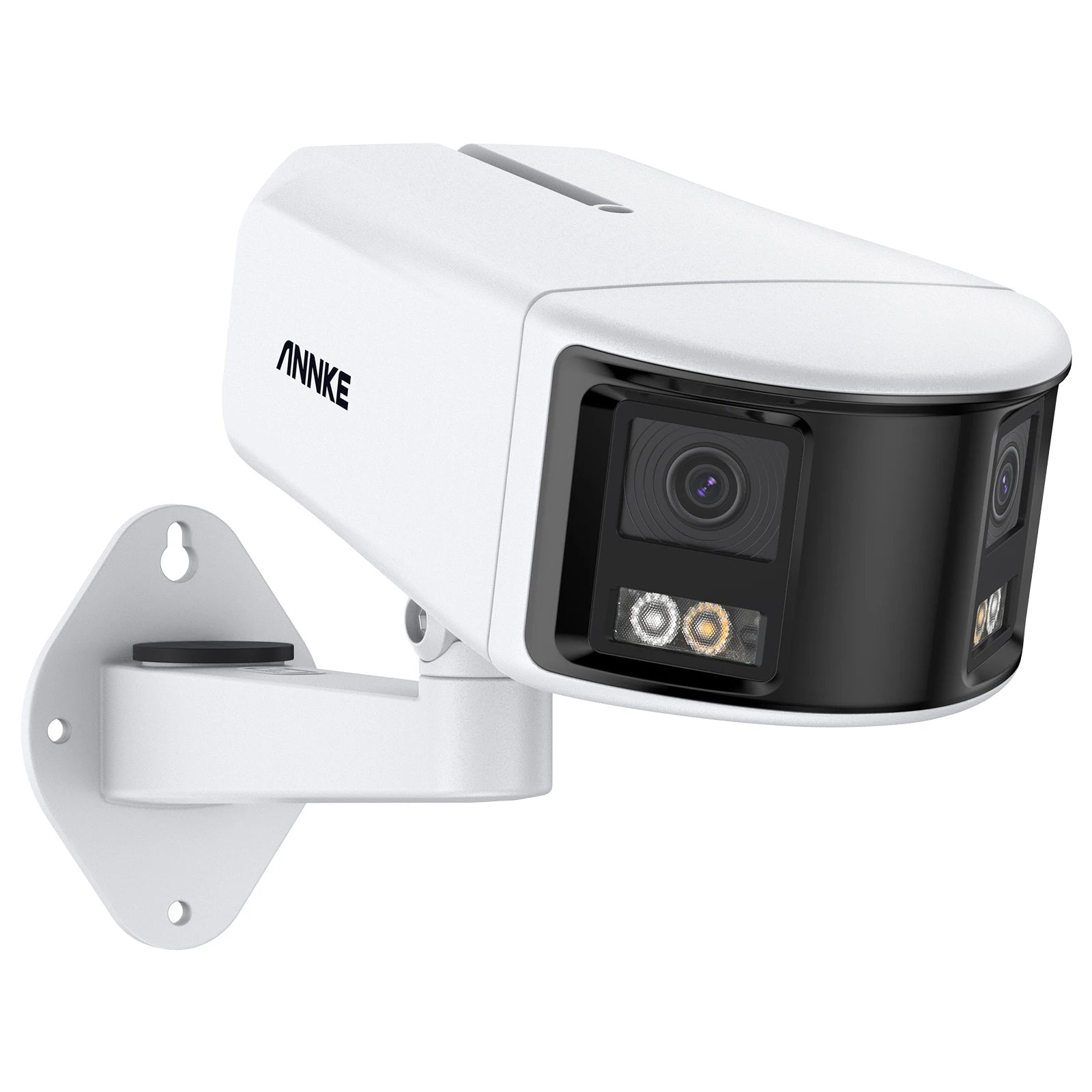

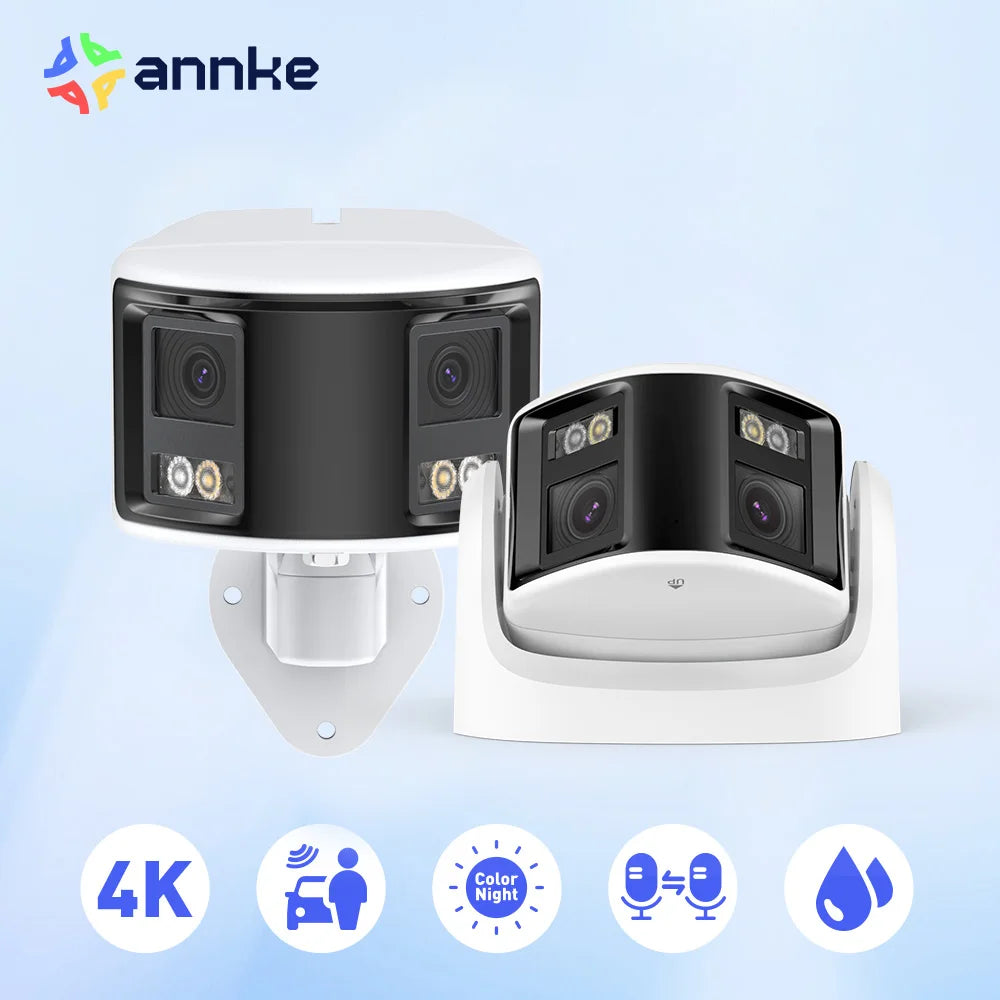

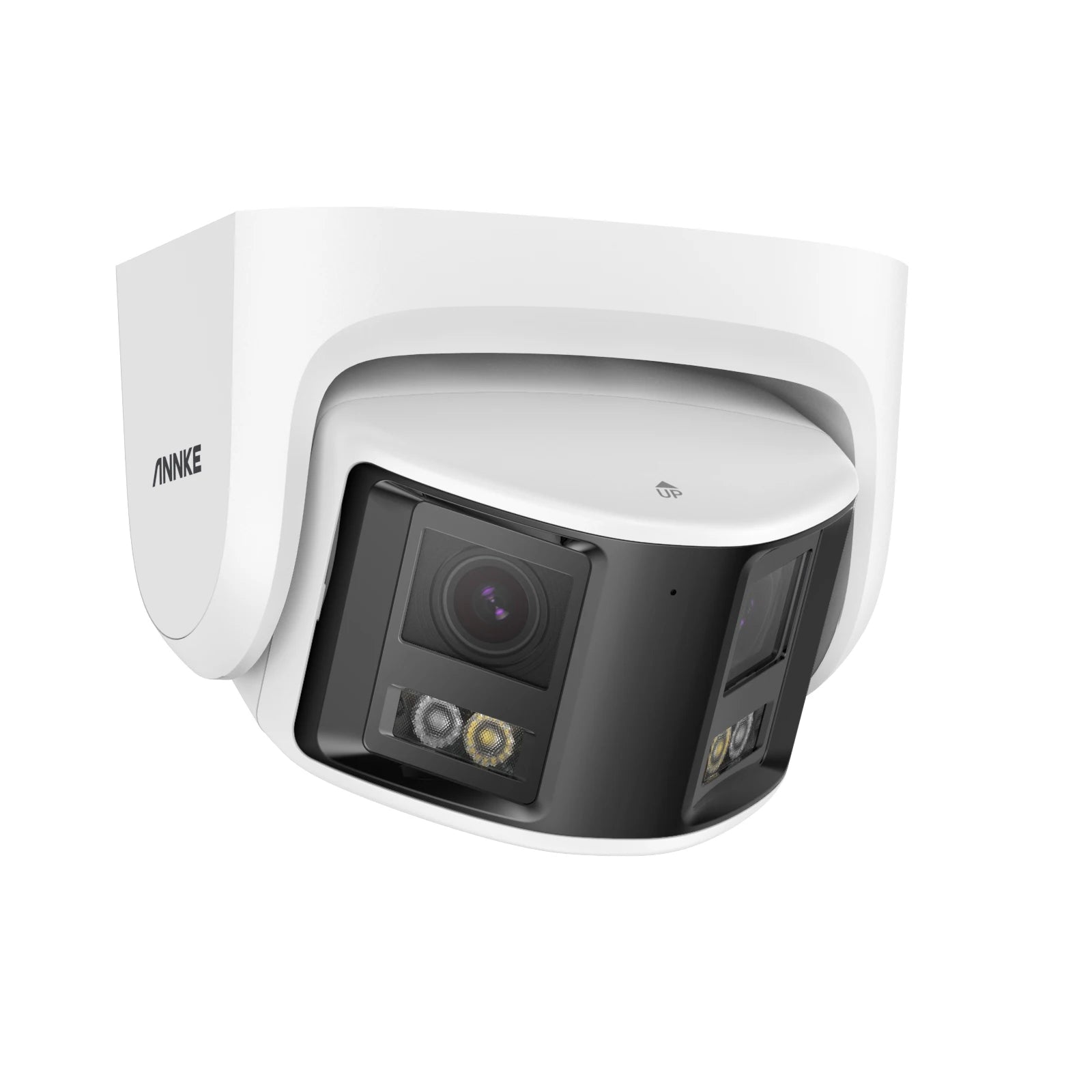

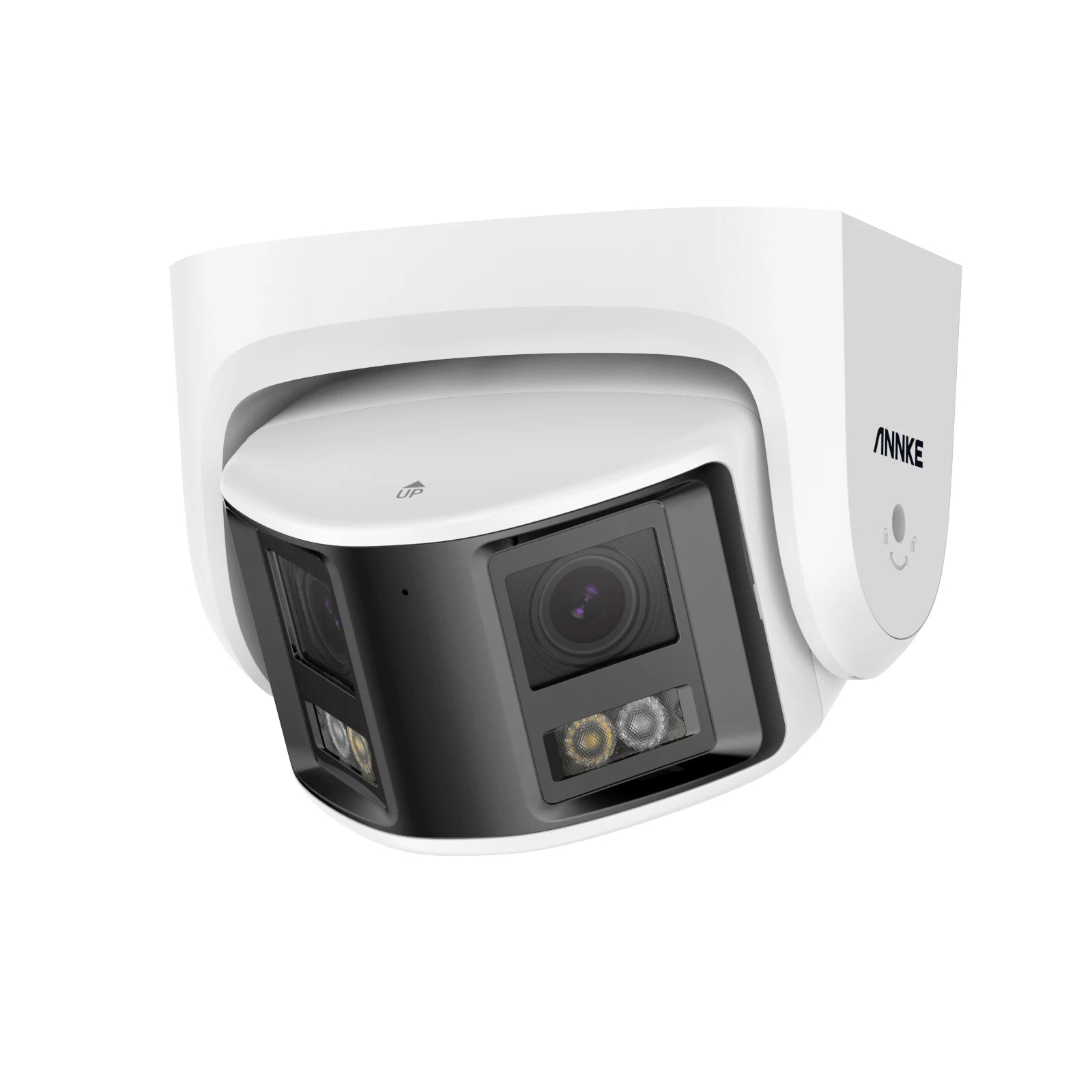

ANNKE 8MP Dual-Lens Outdoor PoE Security Camera for 180° Wide FOV
Cameras :
★ 8MP Panoramic 180°Fixed Network Camera
★ One image that presents all the scenes covered by the camera
★ Efficient H.265+ compression technology
★ Clear imaging against strong back light due to 120 dB WDR technology
★ Focus on human and vehicle classification based on deep learning
★ Audio alarm to warn intruders off
★ White light up to 20 m, IR light up to 30m
★ Water and dust resistant (IP66)
★ Support 256 GB TF storage space
★ Two way audio

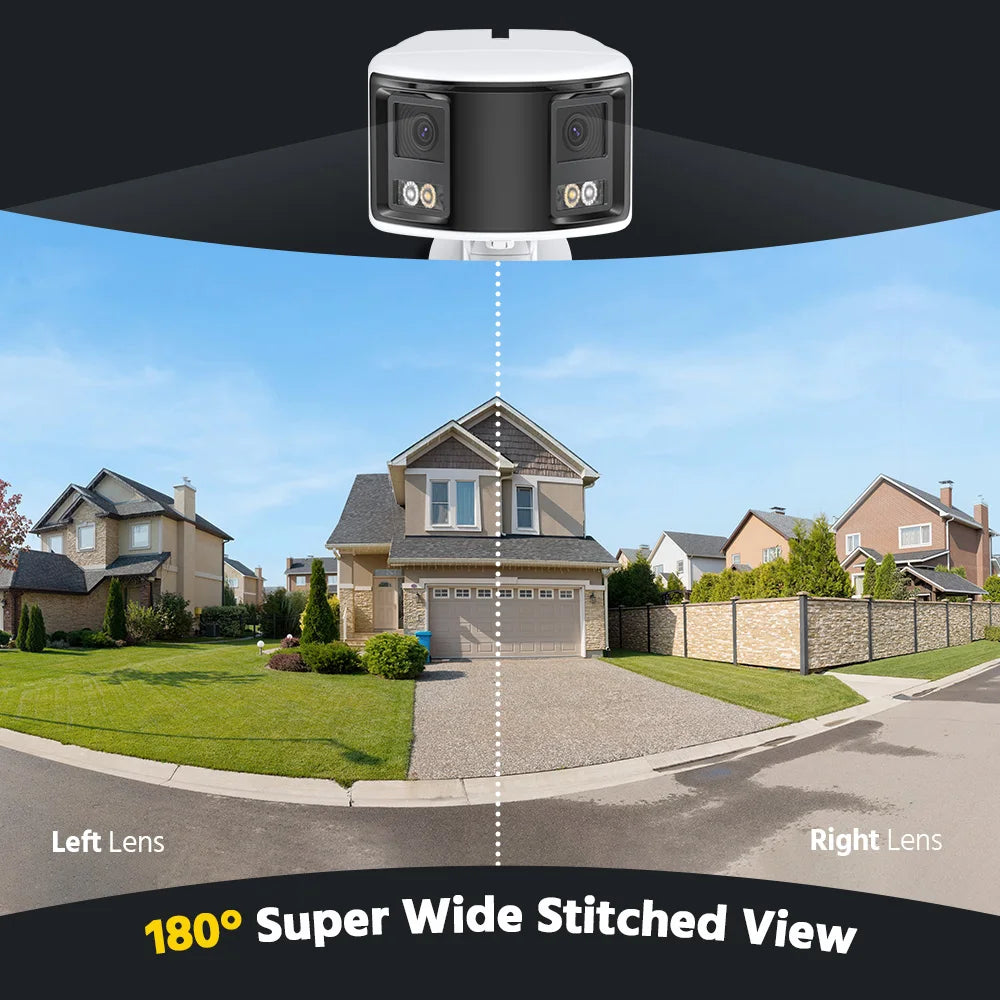

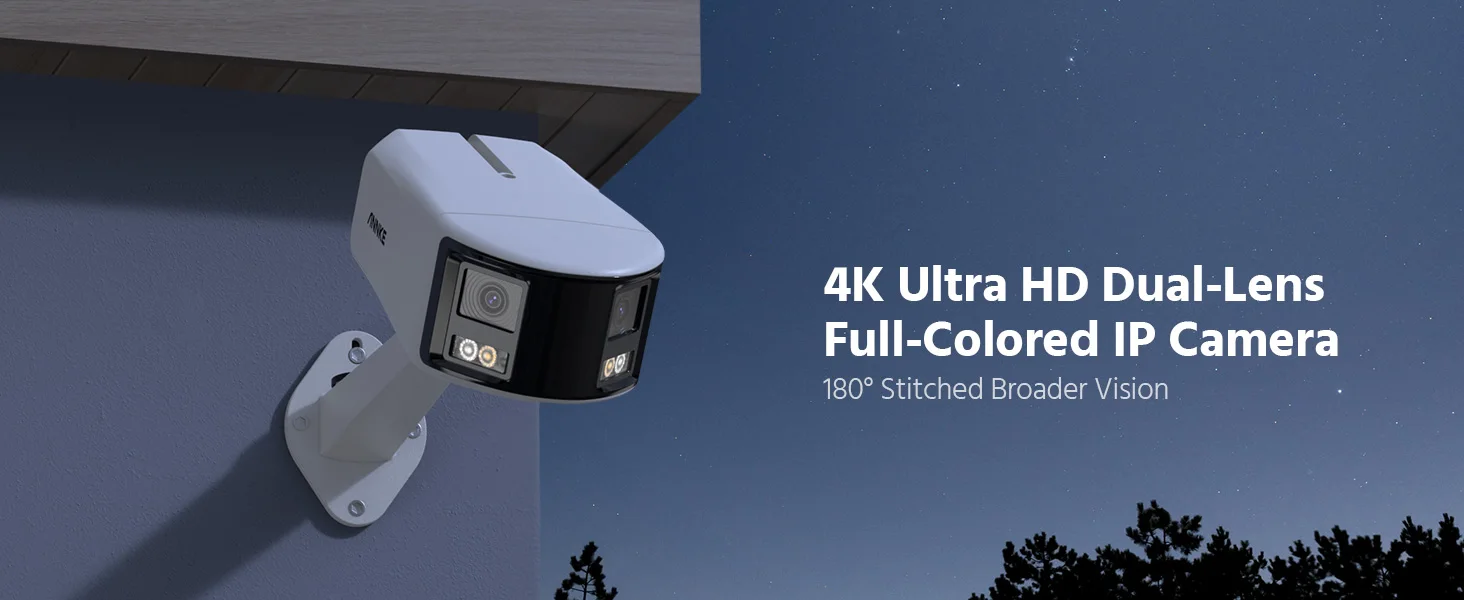

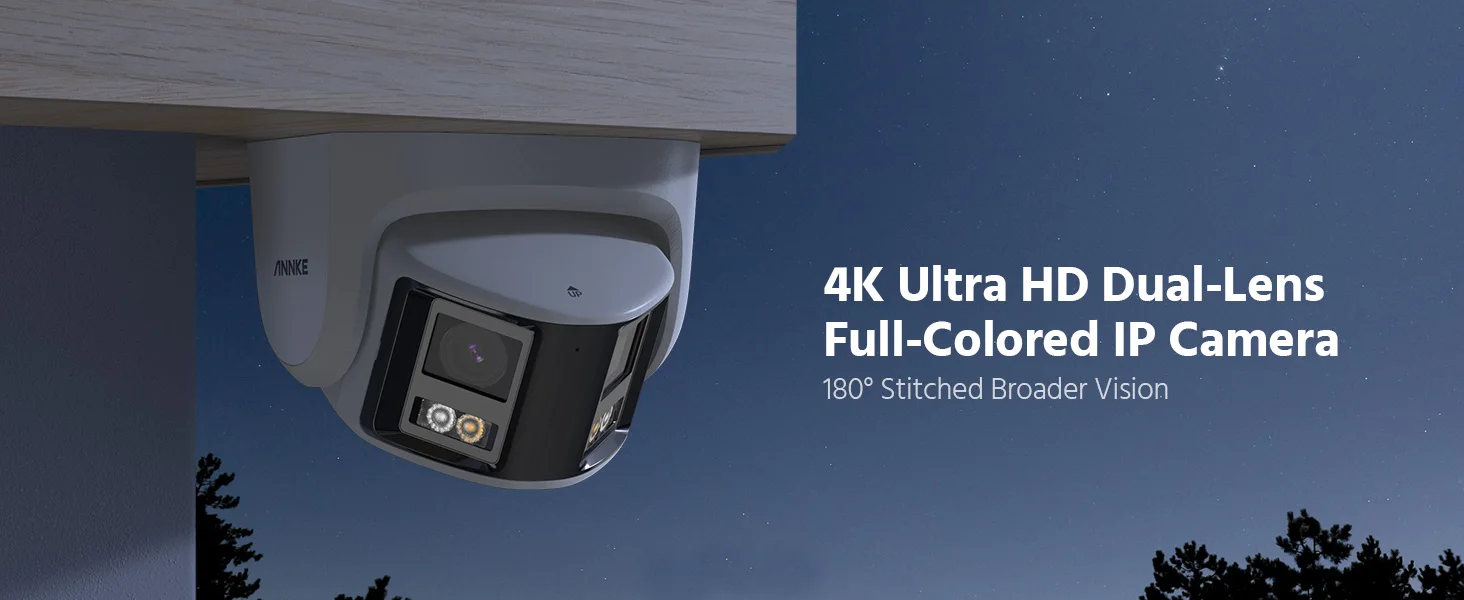

【180° Wider View Features 8MP Clarity】
This dual-lens security cam combines two 1/2.5" BSI sensors into ONE stunning 180° feed without any distortion! Farewell to those regular cams of 90° views in 1080p clarity; cuz this is an ideal choice for your home or business!

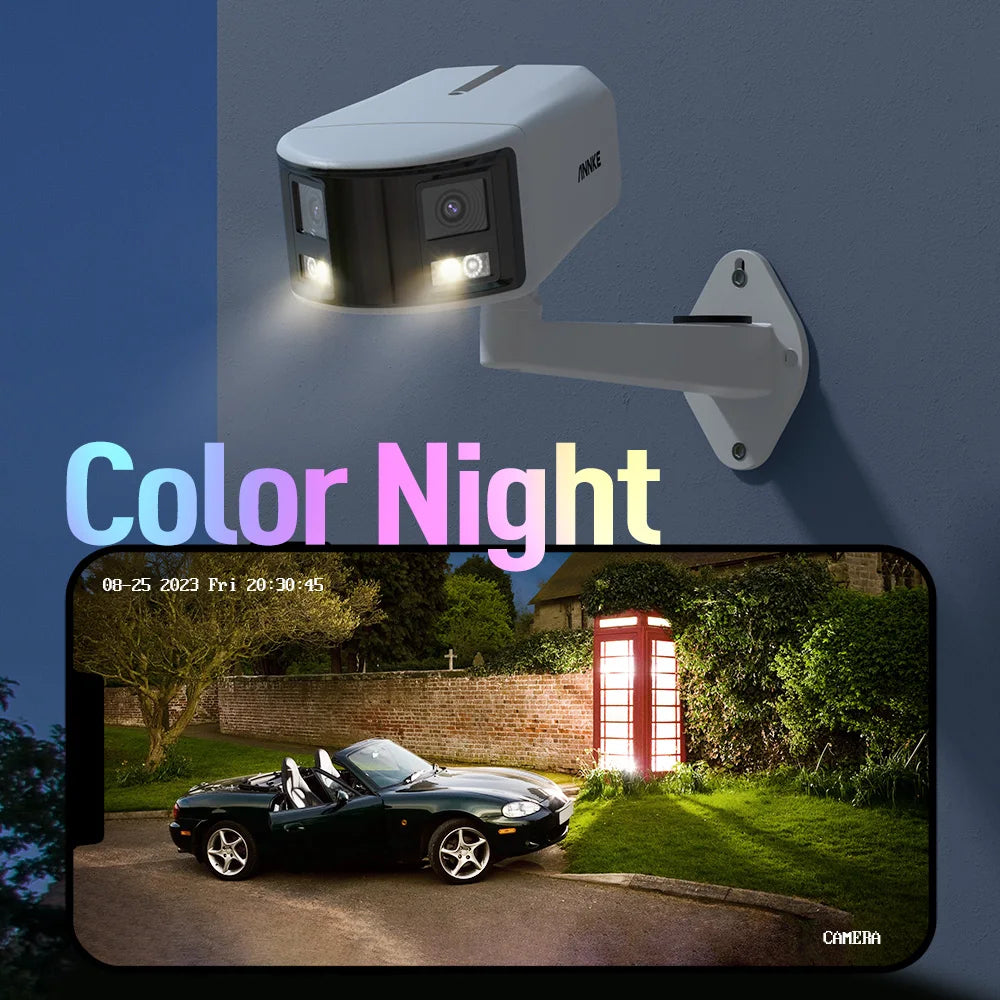

【Full-Color Night Vision, Vibrant As In Daytime】
Equipped with 2 spotlights, this camera revives B&W nights to be colorful as in the day. With it, you may find a lovely squirrel's visit with a pine cone in hands or prevent real threats from happening in the dark.

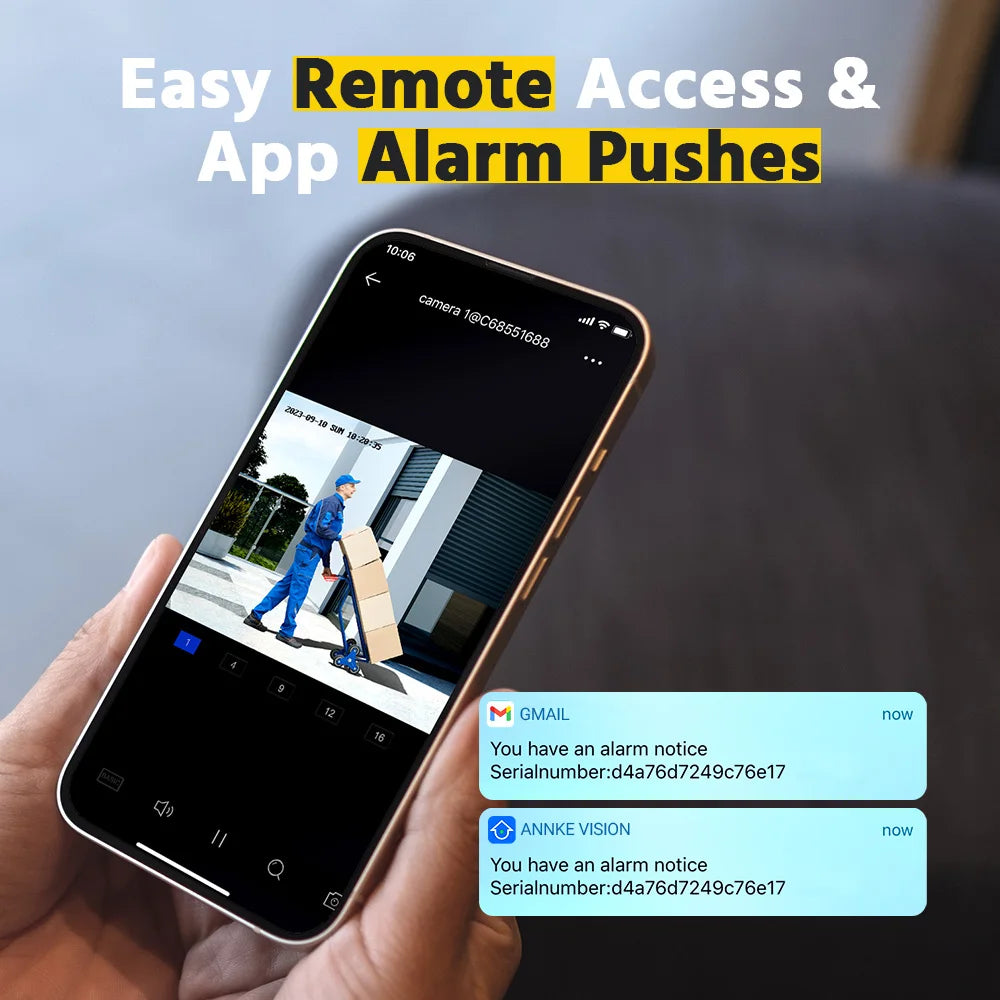

【Next-Level AI Smart Motion Detection】
Once this surveillance camera detects human & vehicle motion, you'll receive real-time alerts. For your greater relief, you may set the line/zone to ward off the unwelcome by triggering the customizable siren.
【Reachable 2-Way Audio】
2-way talk frees you from staying at home and enables you to answer the delivery men or warn the unwelcome even though you're a thousand miles away. The instant pops-up always reminds you of keeping an eye on your home, too.
【Friendly-Designed Details Polish Your Usage】
Unlike those multi-cams with many holes to drill & screws to run, this 1 PoE cam works as 2 and takes up only 1 NVR channel. The outstanding IP66 weather-resistant ability boasts against all the harsh conditions.
Built-in TF card slot (not including TF card), maximum 256G (automatic loop coverage recording), support NAS, NVR storage

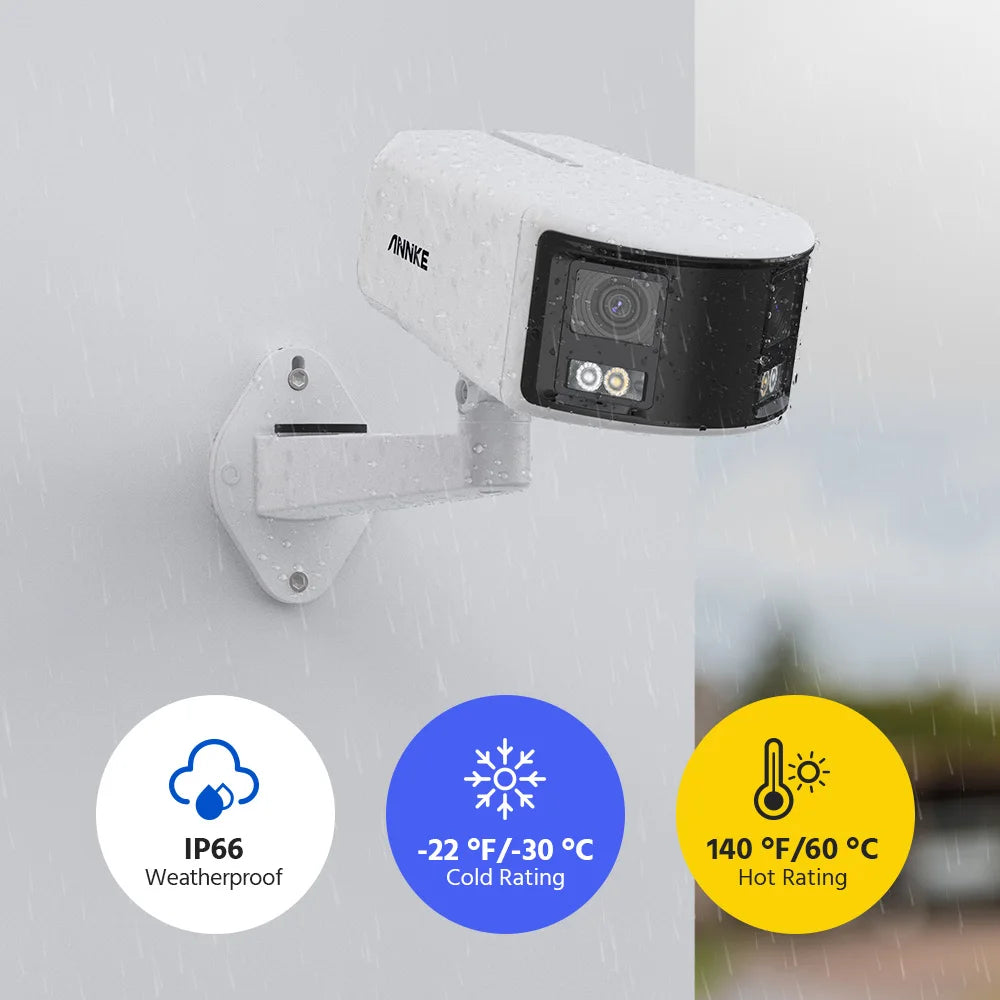

IP66 industrial grade waterproof
Model Number |
I91DW/I91DX |
|
IP Camera | ||
Camera |
Image sensor |
2×1/2.5" Progressive Scan CMOS |
Max resolution |
4K(4096 × 1840), 20: 9 picture ratio |
|
Main Stream |
50 Hz: 20 fps (4096 × 1840) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536，960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 95 dB |
|
Lens |
Dual lens: 2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Angle of View |
Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10° |
|
Supplement Light Type |
White light, IR |
|
Supplement Light Range |
White light up to 20 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |
BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket, SNMP |
|
API |
Open Network Video Interface Version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection) |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
General Function |
IP Address Filter |
|
General |
Housing |
Metal&Plastic, White color |
Operating Power |
PoE (802.3af)，12 VDC ± 25%,Ø 5.5 mm coaxial power plug |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |
Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR |
|
DC12V output |
DC12 V，100 mA output |
|
Audio input/output |
1 input (line in),1 output (line out) |
|
Alarm nput/output |
1 input, 1 output (max. 24 VDC, 1 A) |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
103.6 × 76 × 193.4 mm |
|
Weight |
Approx. 600 g (1.32 lb.) |
|
Packaging: Please check carefully the quantity and product you choose
