Camera Baby Monitor WiFi Indoor Home Security .
Camera Baby Monitor WiFi Indoor Home Security .
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Reolink
High Definition: 4.0 Megapixels
Supported Operating Systems: Windows 10
Supported Operating Systems: Windows 8
Supported Operating Systems: Windows 7
Supported Operating Systems: Mac OS
Lens (mm): 4mm
Style: Mini Camera
Connectivity: WIFI
Installation: Ceiling
Installation: Normal
Minimum Illumination(Lux): 0
Scene: indoor
Color Night Vision: No
Megapixels: 4MP
Storage: 128G
Video Compression Format: H.264
IR Distance(m): 12m
Certification: CE
Certification: FCC
Certification: RoHS
Dimensions (L x W x D)(mm): 107x76x70mm
Color: WHITE
Power Mode: Mains Electricity
Alarm Action: FTP Photo
Alarm Action: Email Photo
Alarm Action: Local Alarm
is_customized: No
Model Number: E1 Pro
Supported Mobile Systems: IOS
Supported Mobile Systems: Android
Smart home platform: Google Assistant
AI Functions: Motion Detection
Special Features: Indoor Mini PT Camera
App name: Other
TF Card: None
Power Supply(V): DC 5V
Audio Output: Two Way Audio
Power Consumption(W): 5W
Sensor: CMOS
Sensor Brand: Omnivision
Operating Temperature: -10°-60°
Shell Material: Plastic
Power Supply: Normal
Viewing Angle : 75°
Optical Zoom: NONE
Operating Frequency: 2.4 GHz/5 GHz
Image Sensor: 1/2.7" CMOS Sensor
Resolution: 2560x1440 (4.0 Megapixels)
Lens: f=4.0 mm Fixed, F=2.0, with IR Cut
Audio Input: Built-in Mic and Speaker, 2 way audio
Power Supply: 5V1A Power Adapter
3rd Party Software Support List: Blue Iris, iSpy, Synology Nas, Qnap Nas.
Browser Live View: IE, Edge, Chrome, Firefox, Safari
Angle of View: Horizontal: 82° Vertical: 43°
Pan/Tilt Angle: Horizontal: 355° Vertical: 50°
Support Micro SD card: Yes, up to 128GB Micro SD card
3rd party software list: Blue Iris, iSpy, Synology Nas, Qnap Nas
Maximal Frame Rate: PAL: 25fps; NTSC: 30fps; (Default: 15fps)
Day/Night Mode: Auto Switchover
Maximal User Access: 20 Users (1 admin account & 19 user accounts)
IR Distance: 12m (40ft) (LED: 8pcs/14mil/850nm)
Dimension: 76x106mm
Weight: 200g
Protocols & Standards: SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Maximal Frame Rate: 25fps (Default: 15fps)
Code Rate: 1024Kbps ~ 5120Kbps
Record Mode: Motion-triggered recording; scheduled recording; 24/7 recording
OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Browser Supported: No
Wireless Standard: IEEE 802.11a/b/g/n
Wireless Security: WPA-PSK/WPA2-PSK
Temperature: Operating Temperature: -10°C~+55°C Storage Temperature: -40°C~70°C
Humidity: Operating Humidity: 20% ~ 85% Storage Humidity: 10% ~ 90%
Waterproof: NO
APP name: Reolink

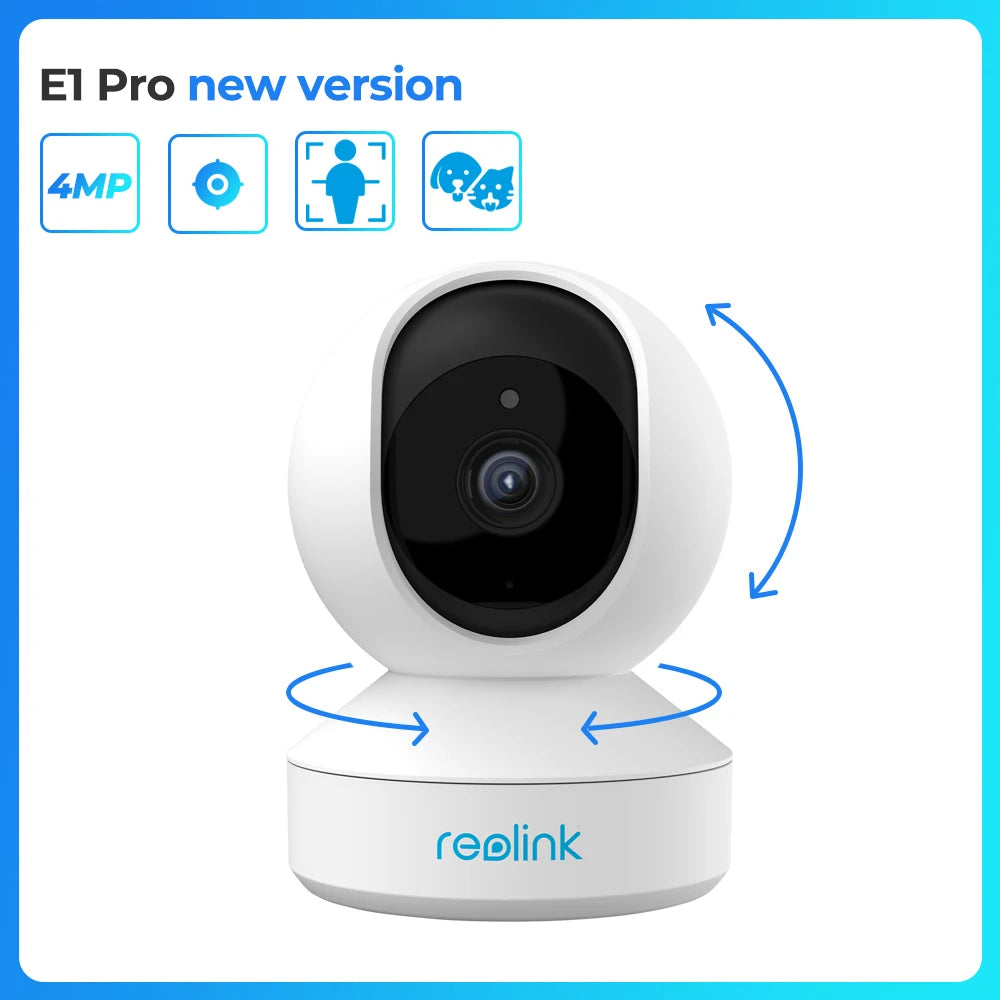

Comparisons between E1 Pro New Version & E1 Pro Old Version | ||
Picture |
|
|
Model |
E1 Pro New Version |
E1 Pro Old Version |
Auto Tracking |
Support |
Not Support |
Smart Alarm |
Motion detection/Human Detection/Pet Detection |
Motion detection |
Storage |
Micro SD card slot(Max. 256GB) |
Micro SD Card Slot(Max. 128GB) |
Field of View |
Horizontal: 84° |
Horizontal: 82° |
Vertical: 45° |
Vertical: 43° |
|
Dimension |
Φ84x118mm |
Φ76x106mm |
Weight |
235g |
200g |
Image Sensor |
1/2.7" CMOSSensor |
|
Video Resolution |
2560x1440 (4MP)@15FPS |
|
Lens |
f=4.0mm Fixed, F=2.4, IR-cut filter with auto-switching |
|
Ethernet |
With Ethernet Port, One10M/100MbpsRJ45 |
|
Pan &Tilt Range |
Pan: 355°, Tilt: 0°~50° |
|
Video Format |
H.264 |
|
Infrared Night Vision |
Up to 12 Meters (40ft)(LED: 8pcs/14mil/850nm) |
|
Audio |
Two-way Audio, with Built-in Microphone and Speaker |
|
DC Power |
DC 5V⎓1A |
|
Wireless Standard |
IEEE 802.11 a/b/g/n |
|
Operating Frequency |
2.4 GHz/5 GHz |
|
Wireless Security |
WPA-PSK/WPA2-PSK |
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
Record Mode |
Motion-triggered recording; scheduled recording; 24/7 recording |
|
Protocols & Standards |
SSL, TCP/IP, UDP,IPv4, UPnP, RTSP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS,P2P |
|
Maximal User Access |
Support up to 12 simultaneous video streams (10 substreams & 2 mainstreams); |
|
Work with |
Google Assistant, Reolink Cloud |
|
Temperature |
Operating Temperature: -10°C~+55°C(14°F~131°F) |
|
Humidity |
Operating Humidity: 20% ~ 85% |
|
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ |
|

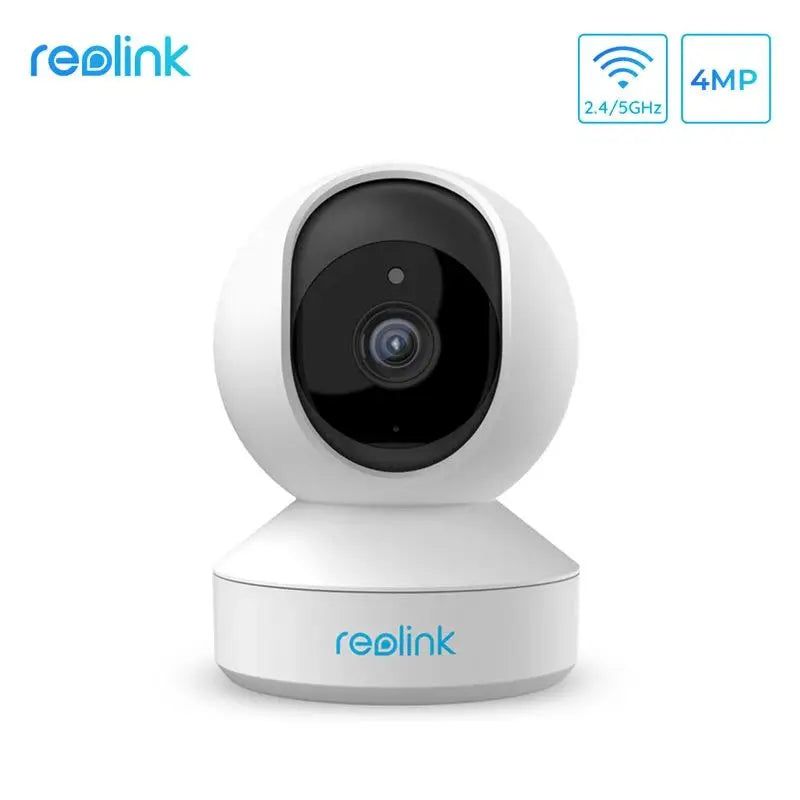

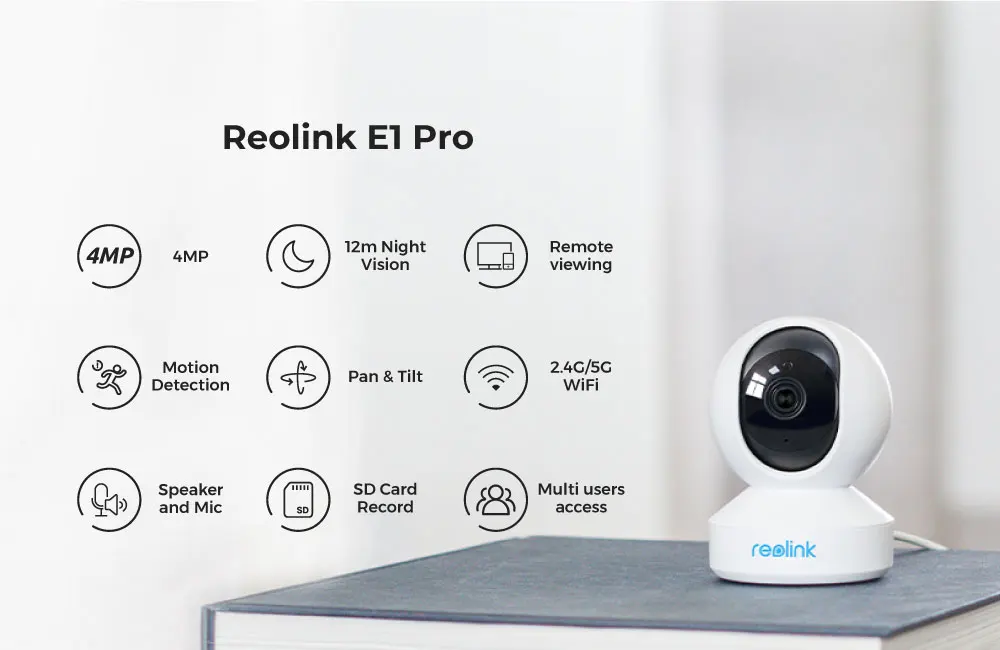

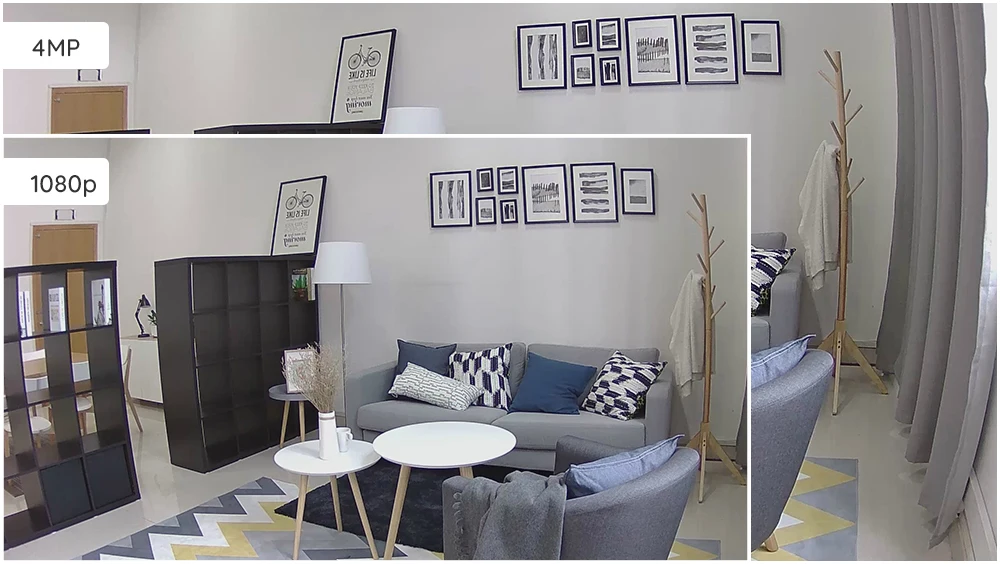

Videos Now Clearer, in True 4MP Super HD
Reolink E1 Pro 4MP security wifi camera captures much sharper and clearer videos than 720p and 1080p surveillance cameras.
Up to 12m night vision
Thanks to 8pcs powerful infrared LEDs and enhanced 3D-DNR technology, E1 Pro ip camera can capture every move of would-be burglars at night with vivid and noise-free details.

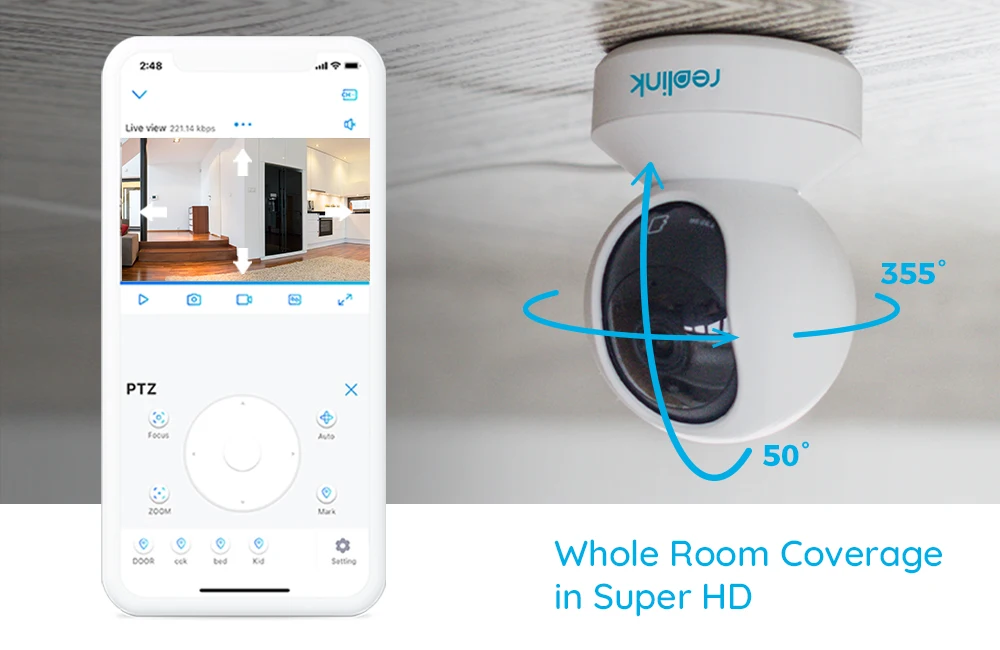

Whole Room Coverage in Super HD
Watching over a large area is now becoming easier. Boasting 355° pan & 50° tilt and 4MP Super HD, E1 Pro can deliver the whole picture of your home, even better, in stunning clarity and vividness.

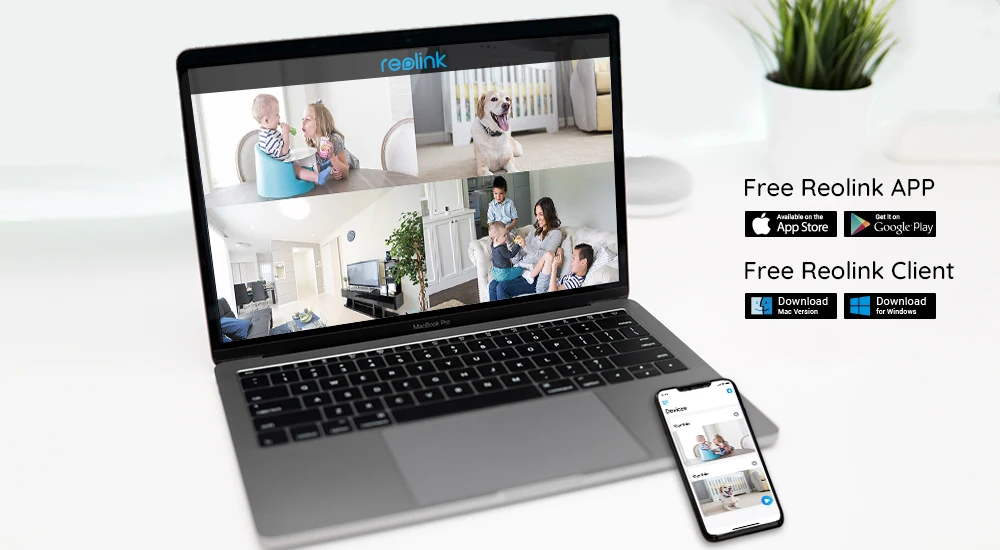

Remote Viewing, Anytime, from Anywhere
Remotely view the camera via: free Reolink App on your mobile device, free Reolink Client on your computer.
Get Real-Time Alerts That Matter
The 4MP home security camera can detect motion and notify you instantly through push notifications, emails alerts or buzzer sounds(if you connect it to Reolink NVR). You can personalize all kinds of alerts to fit your needs.

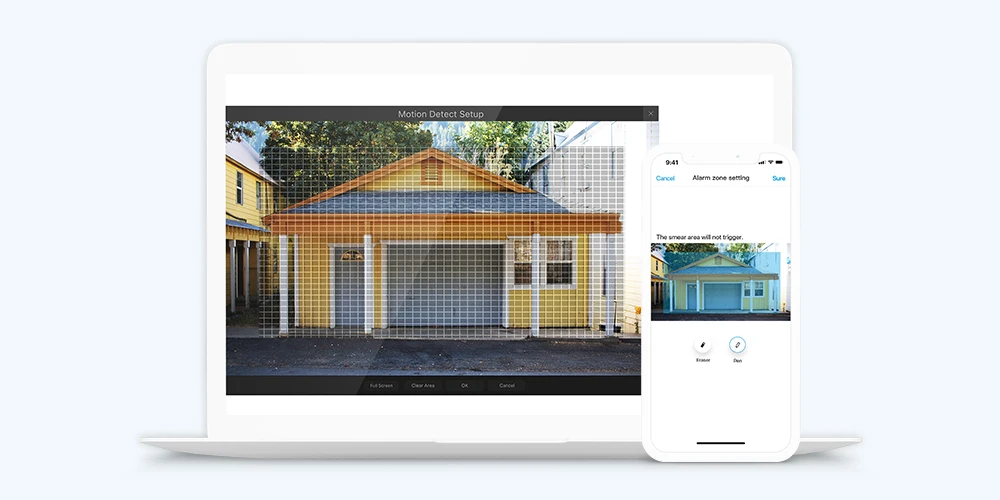

Focus on the Areas That Matter
Create the specific areas that you want to receive motion alerts from. It can save you the trouble of unwanted alarms from out of designated areas.
Save all motions in SD card
This camera supports up to 128GB micro SD cards with FAT32 format and Class 10 read & write speed. The SD card will record when motion detection is triggered. The camera supports pre-record(3s-6s) and post-record. When the SD card is full, it will automatically cover the old video.

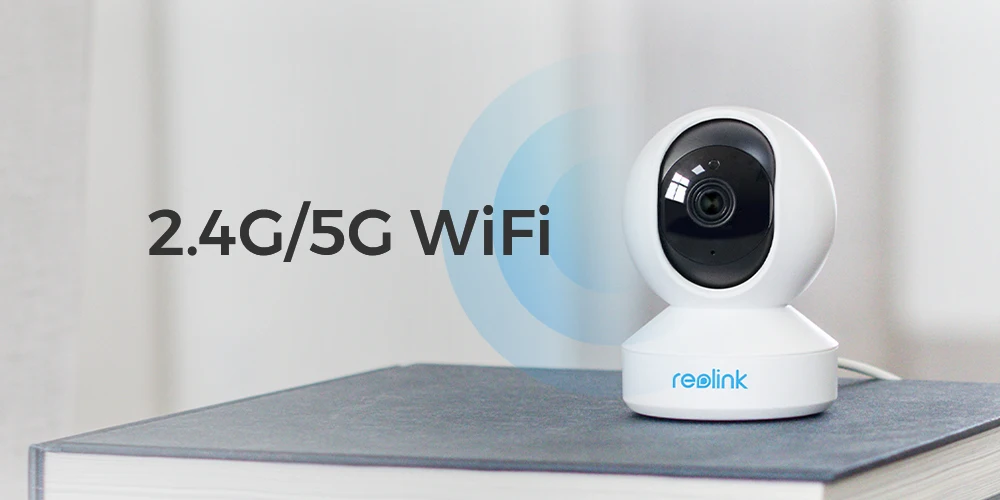

Simple and Reliable Dual-Band WiFi
E1 Pro supports both 2.4 GHz and 5 GHz WiFi, offering more options of wireless connection. Dual-band WiFi technology and 2T2R MIMO antennas ensure a robust signal for reliable network performance.
See, Hear and Talk to Your World
With built-in mic and speaker, you can hear and speak through the camera. Talk with your kids, have fun with pets or ward off would-be burglars.
Free Firmware Update
Free Reolink firmware update helps your camera/NVR keep up with the up-to date features as well as fixing any bugs or glitches.
Work with NVR for 24/7 Reliable Recording
If you have multiple IP cameras or if you want 24/7 recording, a Reolink NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.
Step 1: Connect the camera to a wifi router via wifi signals or an ethernet cable, and it needs to be powered via a power adapter.
Step 2: Connect the NVR to the same router by a network cable.
The NVR will pick up all the cameras on the same network.
A sample: it can record motion detection without WiFi, but you're not able to remotely access the camera and receive motion alerts without Internet. More details, please refer to this article: https://support.reolink.com/hc/en-us/articles/360007170094
Attention:
The default power adapter of cameras from CN warehouse is EU plug. If you need AU/US/UK plug, please contact us before payment.
|
E1-Pro-IP-Camera-Specifications | ||
Model |
E1 Pro |
|
Hardware Features |
Image Sensor |
1/2.7" CMOS Sensor |
Display Resolution |
2560x1440 (4 Megapixels) |
|
Lens |
f=4.0mm Fixed, F=2.4, with IR Cut |
|
Angle of View |
Horizontal: 82° |
|
Vertical: 43° | ||
Pan/Tilt Angle |
Horizontal: 355° |
|
Vertical: 50° | ||
Minimum Illumination |
0 Lux (with IR Illuminator) |
|
IR Distance |
12m (40ft) (LED: 8pcs/14mil/850nm) |
|
Dimension |
Φ76x106mm |
|
Weight |
200g |
|
Power Input |
DC 5.0V/1A |
|

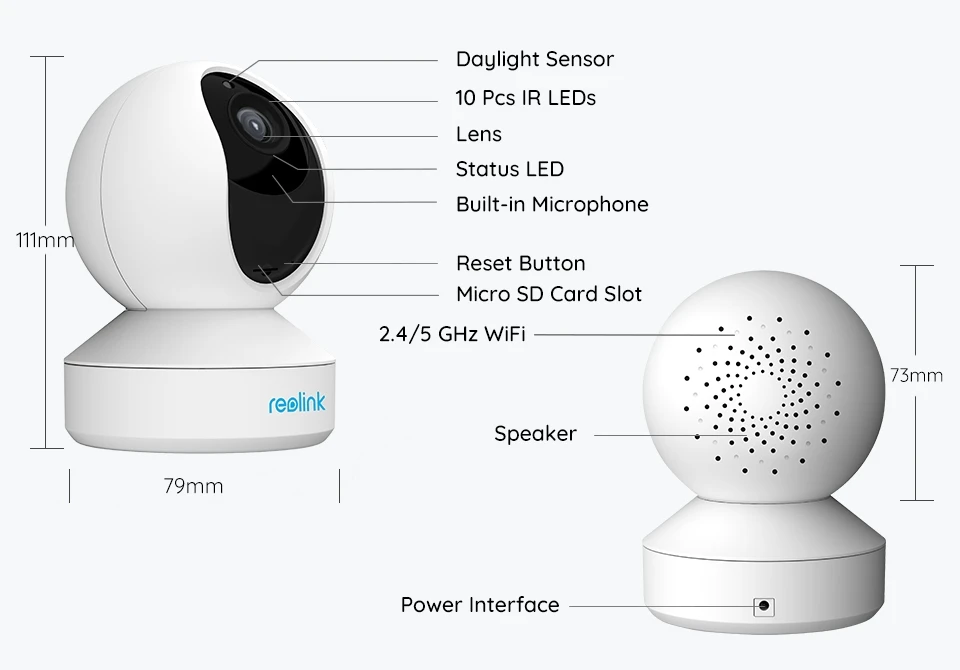

Interface |
Power |
|
Micro SD Card Slot (Max. 128GB) | ||
Built-in Microphone and Speaker | ||
Reset Button | ||
Software Features |
Protocols & Standards |
SSL, TCP/IP, UDP,IPv4, UPnP, RTSP, SMTP, NTP, DHCP, DNS, |
Image Compression |
H.264 |
|
Maximal Frame Rate |
25fps (Default: 15fps) |
|
Code Rate |
1024Kbps ~ 5120Kbps |
|
Audio |
Two-way Audio |
|
Maximal User Access |
20 Users (1 admin account & 19 user accounts); |
|
Browser Supported |
No |
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
Record Mode |
Motion-triggered recording; scheduled recording; 24/7 recording |
|
Wireless Features |
Wireless Standard |
IEEE 802.11a/b/g/n |
Operating Frequency |
2.4 GHz/5 GHz |
|
Wireless Security |
WPA-PSK/WPA2-PSK |
|
Other Parameters |
Temperature |
Operating Temperature: -10°C~+55°C |
Storage Temperature: -40°C~70°C | ||
Humidity |
Operating Humidity: 20% ~ 85% |
|
Storage Humidity: 10% ~ 90% | ||
Waterproof |
No |
|
Warranty |
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ |
