SPECIFICATIONS



Brand Name: Cyrusher





Voltage: 48V

Foldable: No

Wattage: 200 - 250w

Power Supply: lithium battery

Hign-concerned Chemical: None

Certification: ce

Frame Material: Aluminum Alloy

Battery: 48V 20Ah

Charging Time: 4-5 hours

Speed Class: Up to 28 mph on Level 5 PAS

Range: 50-80 Miles (80-130 Km)

Payload Capacity: 440 lbs (200 kg)

Charger: 48V 4.5A

Battery Lifetime: 800 cycles

Weight: 104.2 lbs (47.3 KG) With Battery

Motor: 160 N.m Bafang M620 Mid-Drive Motor

Tires: Kenda 20" X 4" Puncture-Resistant Fat Tires

Brakes: Starunion 220Pyd 4-Piston With 203 Discs

Chain: Kmc 9S Silver Chain For Sport,122 Links

Front Suspension: DNM USD-8FAT travel 160mm

Rear Suspension: Dnm Air Shock 185Mm/24Mm

Throttle: Twist Throttle

Rims: Aluminum Alloy

Seat Post: Dnm 350*30.9Mm Suspension Seat Post

Spokes: 12-Gauge Stainless Steel

Display: 3.7" LCD display, Colorful Smart Computer

Crank Set: Bafang 44T Chainring With 170Mm Crank Arm

Derailleur: 9 Speed Shimano Rear Derailleur

Frame: 6061 Aluminum Alloy With Internal Battery

Gearing: 9-Speed Shifter Sl U4000-9R

Kickstand: 6061 Aluminum Kickstand

Saddle: Breathable Ergonomic Sport Cushion Seat

Sensor: Torque Sensors

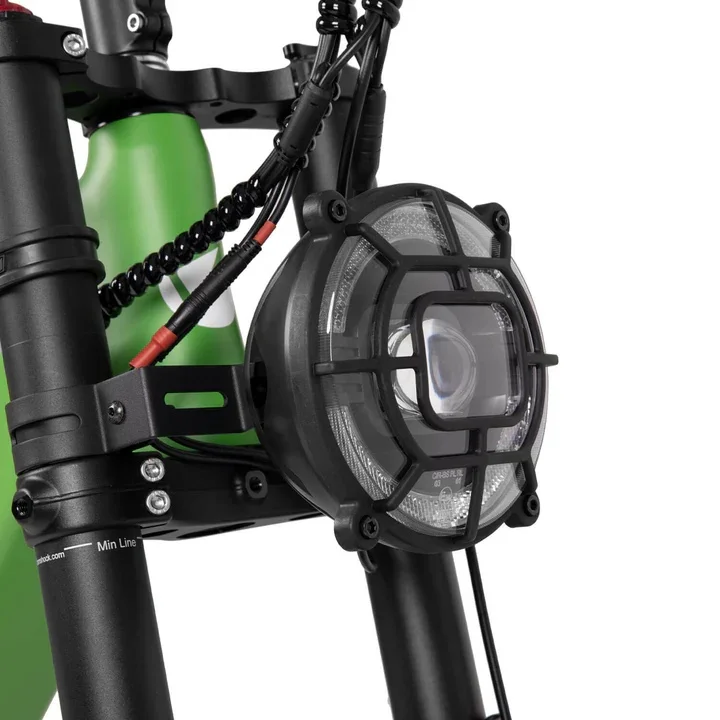

Front Light: 1000 Lumen Led

Frame: 2 years warranty

Battery: 1 year warranty

Parts: 1 year warranty

In The Box: Battery, Charger, Air Pump, Assembly Toolset

Terms & Conditions: This warranty only applies to the original owner of a Cyrusher and is limited to the replacement of defective parts. Cyrusher covers the cost of the replacement, buyer is responsible for the shipping cost.

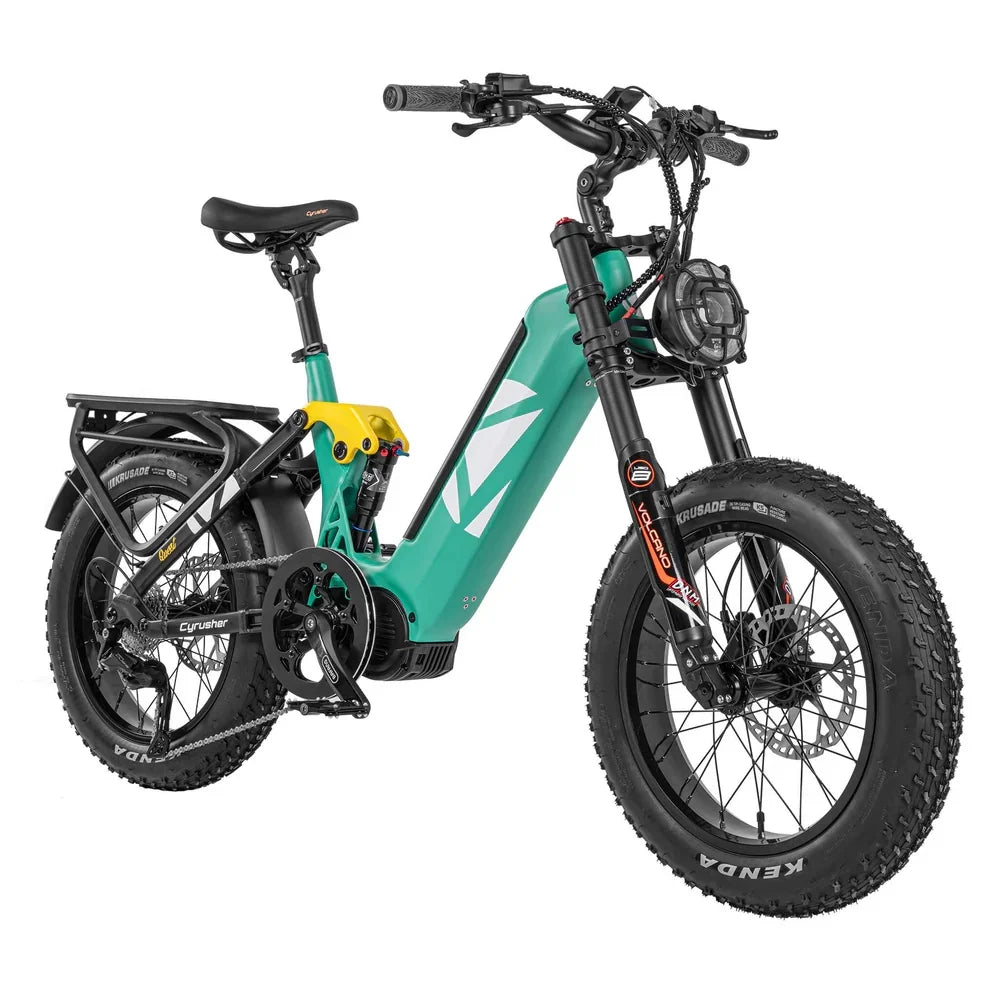

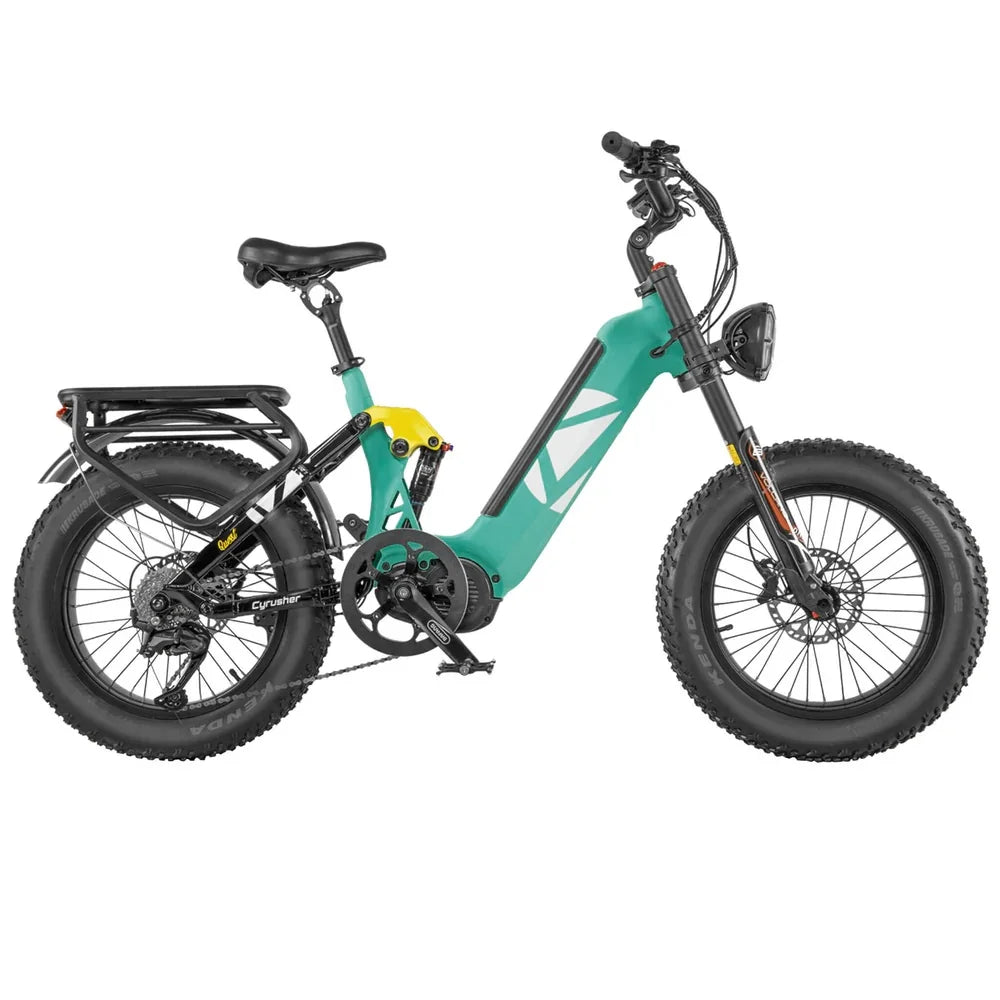

Cyrusher Quest Mid-Drive Step-Thru Electric Bike

The Cyrusher Quest is the first 20-inch step-through e-bike with a mid-drive motor and full suspension. With a powerful Bafang M620 motor, 48V20Ah battery, and a 80miles range, it offers a thrilling and smooth ride on any terrain, making every journey an adventure.

Features:

★Range--80Miles

★Top Speed--28MPH

★Battery--48V 20Ah

★Motor--1000W

★Fat Tires--20x4.0"

★Sensor--Torque Sensor

Made of Quality Components

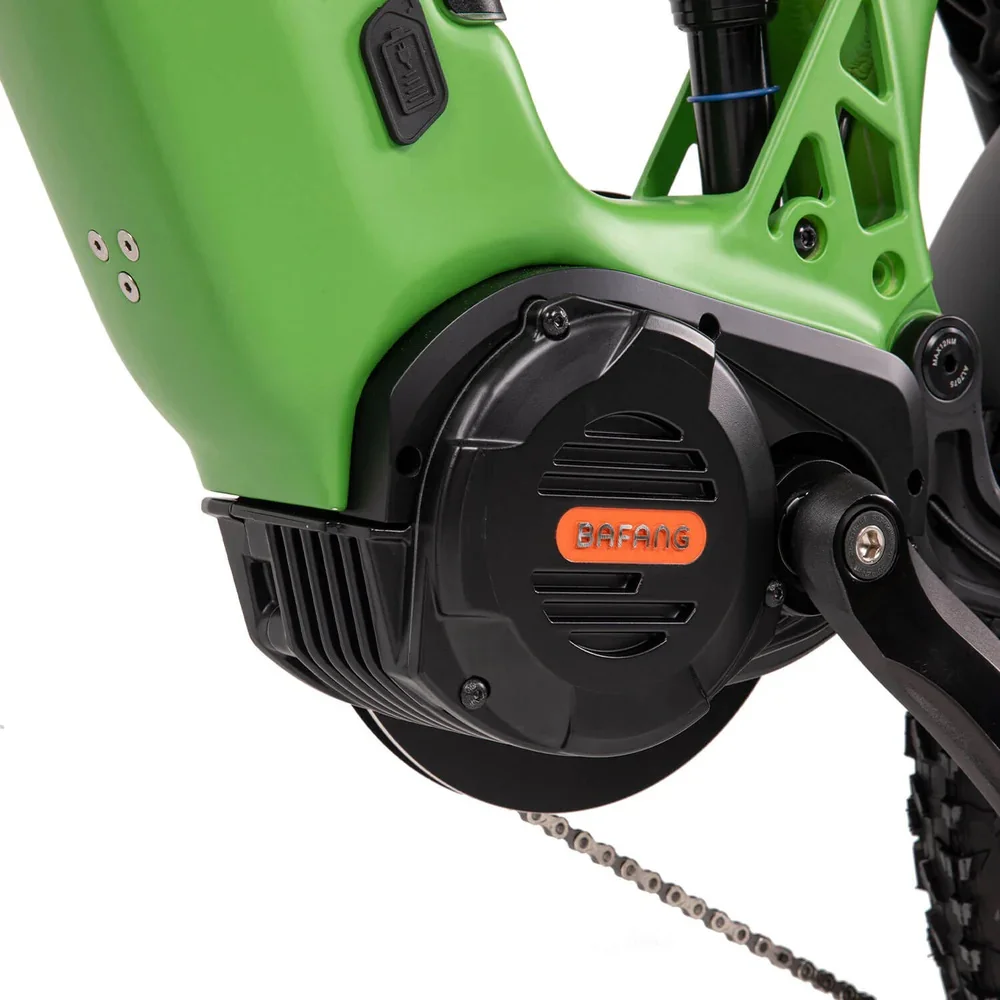

Bafang M620 Mid-Drive Motor

With its powerful performance and 160Nm max torque, the powerful Bafang motor allows you to run at high speeds and, in assisted mode, cruise with little to no effort.

Bafang DP C010 Screen

Stay informed of your journey thanks to the LCD screen which brings together all the essential information, such as speed, battery life and level of pedaling assistance. You'll never miss details with this convenient, easy-to-use display.

Intelligent & Sophisticated

The Quest's advanced features, including the Bafang Mid-Drive 4" color display and ultra-bright front light, keep you connected and in control. Waterproof and anti-glare technology means you'll enjoy crystal clear visibility in all conditions, day or night. And with the Quest's sleek and modern design, you'll turn heads wherever you go.

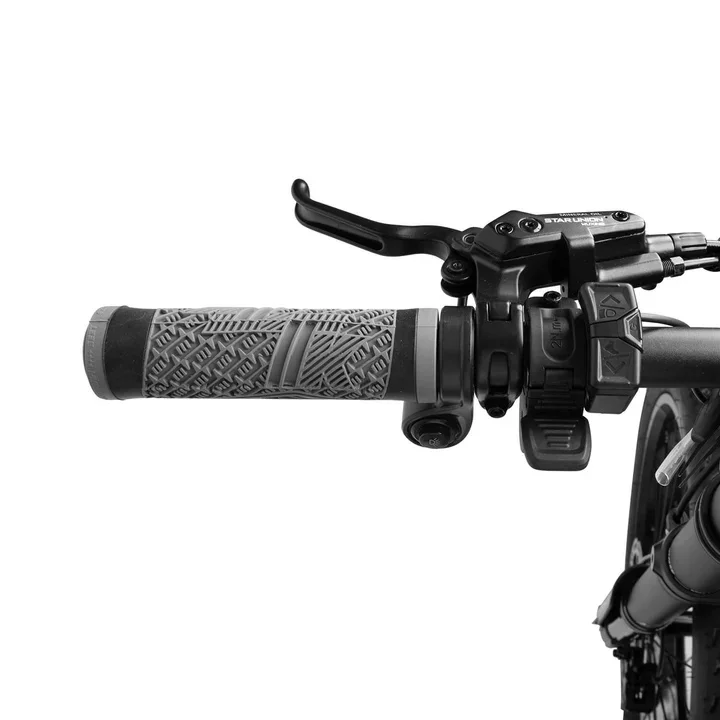

Handlebar Grips

Crafted with precision and designed for ultimate comfort, these handlebar grips are the perfect addition to your electric bike

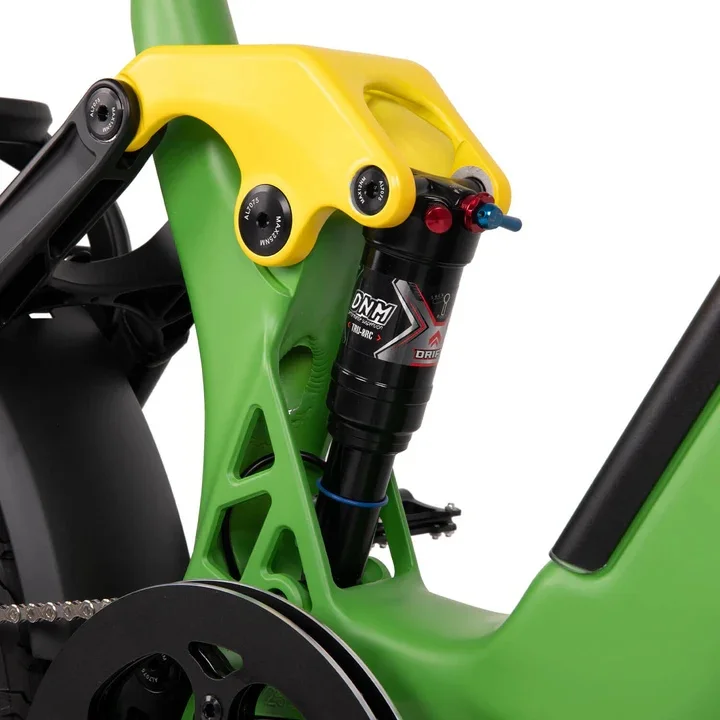

DNM air shock 185mm/24mm

provides smooth ride, durability, and efficiency. Its innovative design ensures a smooth and comfortable ride, even on the toughest terrains designed to provide exceptional suspension performance for your ebike.

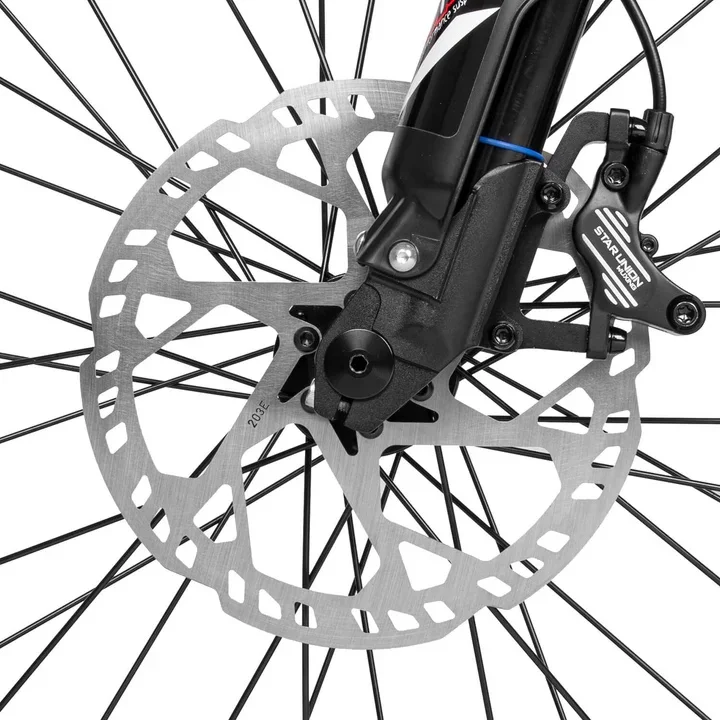

Starunion 220PYD 4-piston with 203 discs

The Starunion 4-piston hydraulic brakes with 203mm discs provide superior stopping power, allowing you to navigate steep descents and unexpected obstacles with complete control.

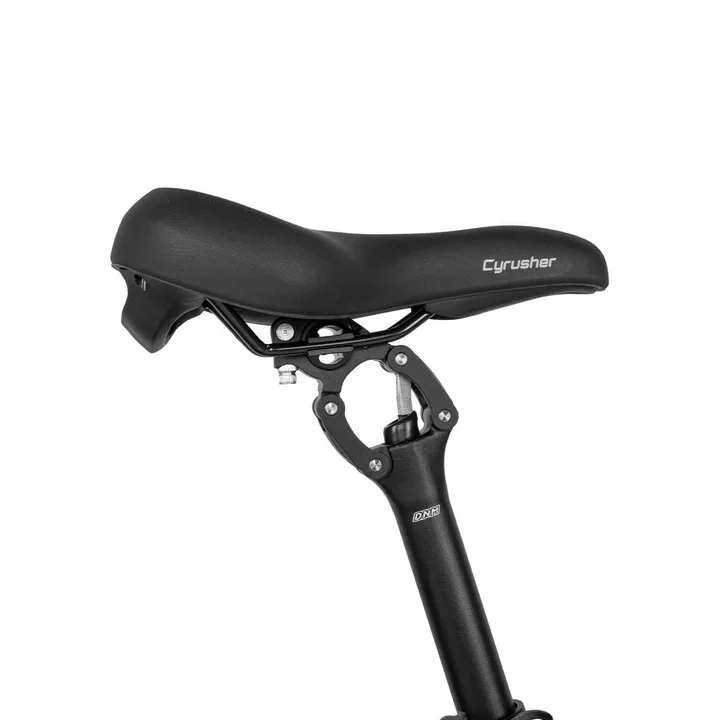

DNM 350*30.9MM suspension Seat Post

Whether you’re tackling off-road trails, city streets, or long-distance tours, the DNM suspension seat post adapts to different riding conditions, providing consistent performance and comfort. This versatility makes it a valuable addition to your ebike, enhancing the overall riding experience.

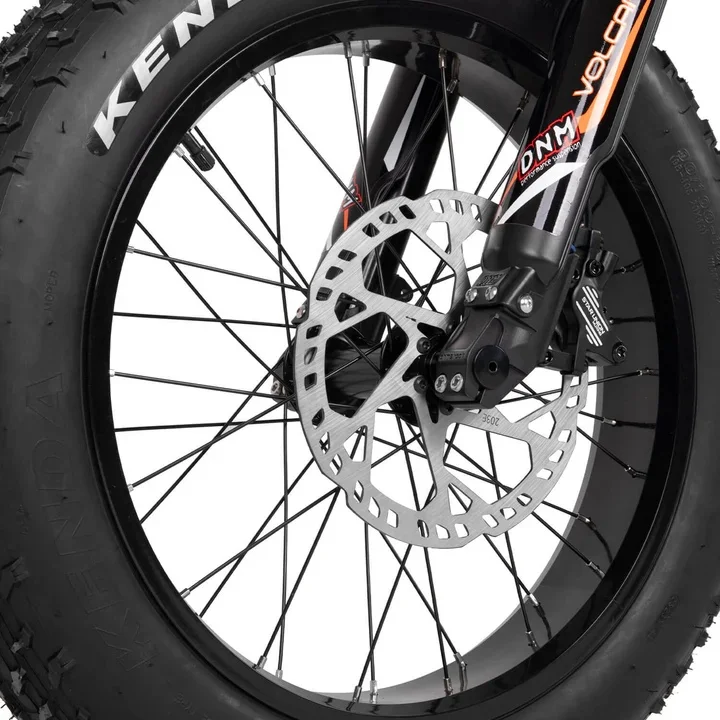

DNM Fork Model: USD-8FAT travel 160mm

The DNM USD-8FAT is designed to deliver optimal performance whether you're tackling rough terrain or driving on city streets. The air pressure adjustable design allows you to adjust the fork according to your weight, riding style and terrain conditions, ensuring a smooth and responsive ride every time.

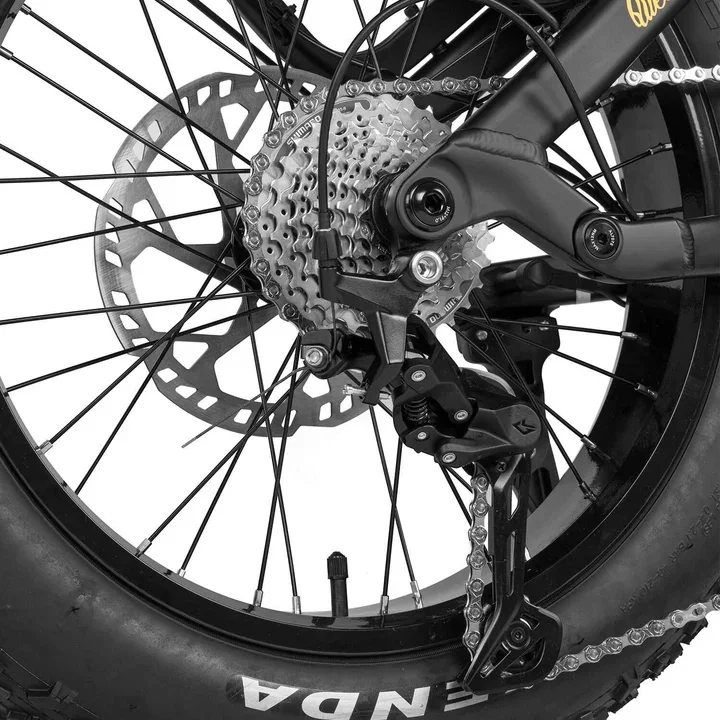

Rear Derailleur Ardu3020Sgs Cassette

The Shimano ARDU3020SGS is a part of Shimano’s Altus series, which is known for providing reliable and precise shifting performance. This derailleur is designed to handle a wide range of gear ratios, making it suitable for various types of riding, from urban commuting to off-road adventures.

Unmatched Power and Performance

Bafang M620/Mid-Drive Motor:

The Cyrusher Quest is designed around the unparalleled power and performance of the Bafang M620 mid-drive motor. Often referred to as the “diesel engine” of mid-drive motors, the M620 is built with all-metal, heavy-duty gearing, ensuring it is both durable and capable. The integrated torque sensor adds intelligence to this powerhouse, making it one of the most efficient motors on the market. With 160Nm of torque, you can tackle steep hills and challenging terrains effortlessly, making your rides more exciting and rewarding.

Extended Range for Long Adventures

48V 20Ah High-Capacity Battery:

Equipped with a 48V20Ah 21700 cell battery, the Quest provides an impressive range of up to 100 KM on a single charge. This extended range capability means you can embark on all-day adventures or long-distance commutes without worrying about running out of power. The battery can be fully charged in about 5 hours, ensuring quick turnarounds and minimal downtime. Whether you’re planning a day trip or a weekend excursion, the Quest ensures you have the power to go the distance.

Superior Comfort and Control

Advanced Suspension System:

The Quest features a high-end suspension system designed to provide exceptional shock absorption and a smooth ride. The DNM air shock rear suspension and USD-8FAT front fork with 160mm travel are specifically engineered for off-road performance, ensuring that you can tackle rough terrains with ease. The adjustable suspension seat post allows you to tailor the ride to your preferences, ensuring optimal comfort and control, especially during long rides and varying terrains.

Exceptional Safety and Precision

Starunion 4-Piston Hydraulic Brakes:

Safety is paramount with the Quest’s advanced braking system. The Starunion 4-piston hydraulic brakes with 203mm discs provide superior stopping power, allowing you to navigate steep descents and unexpected obstacles with complete control. This braking system is designed to perform reliably under extreme conditions, giving you confidence on every ride. Additionally, the Bafang 52T crankset paired with a Shimano 9-speed shifter ensures smooth and precise gear changes, enhancing both safety and riding experience.
