SPECIFICATIONS



Brand Name: Reolink





High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 10

Lens (mm): 3.26mm

Lens (mm): 2.8mm

Style: Bullet Camera

Connectivity: IP/Network Wired

Installation: Normal

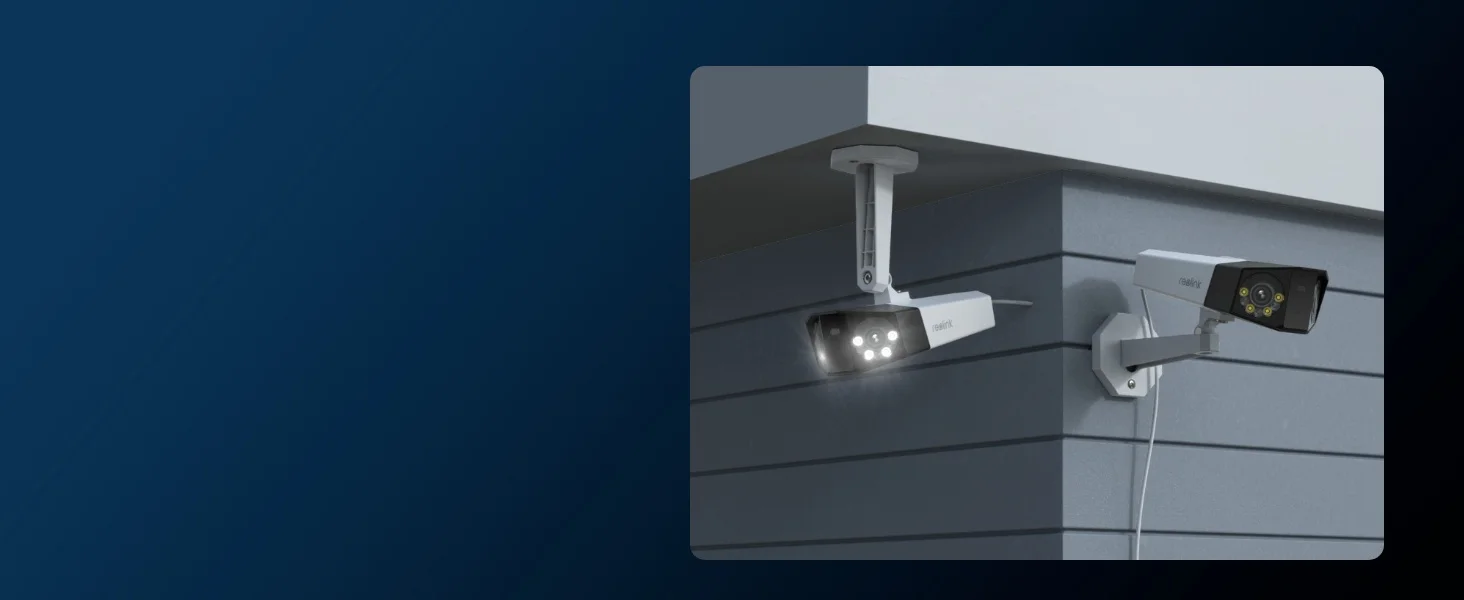

Installation: Wall Mounted

Minimum Illumination(Lux): 100

Scene: Indoor and outdoor

Color Night Vision: YES

Megapixels: 8MP

Storage: None

Video Compression Format: H.265

IR Distance(m): 30M(100ft)

Certification: CE

Certification: FCC

Certification: RoHS

Certification: weee

Dimensions (L x W x D)(mm): 195*103*56cm

Color: WHITE

Power Mode: Mains Electricity

Alarm Action: FTP Photo

Alarm Action: telefon Alarm

Alarm Action: Email Photo

Alarm Action: Local Alarm

Movement Range(Tilt): other

is_customized: No

Model Number: Dual-Lens Security Camera

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

Smart home platform: Alexa

Smart home platform: Google Assistant

AI Functions: Pet Detection

IP Rating: IP67

Special Features: Waterproof / Weatherproof

App name: other

TF Card: None

Digital Zoom: other

Power Supply(V): DC12V/2A & PoE (IEEE 802.3af)

Audio Output: Two Way Audio

Power Consumption(W): <15W

Sensor: CMOS

Sensor Brand: Omnivision

Operating Temperature: -10°-60°

Shell Material: plastic

Power Supply: With POE

Viewing Angle : 180°

Optical Zoom: none

Rechargeable Battery: none

Video Format: H.265

Image Sensor: 1/2.7"

Lens for 16MP Cam: f = 2.8 mm fixed, F = 1.6

Lens for 8MP Cam: f = 3.2 mm fixed, F = 2.0

Infrared Night Vision: 30 meters (LED: 6pcs/20mil/850nm)

Storage: Micro SD card slot (PoE & WiFi cam Max. 256GB, battery cam Max. 128GB)

Detection: Human Animal Car Detection

POE: IEEE 802.3af, 48V, active

Network: One 10M/100Mbps RJ45

DC Power: DC 12V/2A, <12W

Day & Night: Auto-switching with IR cut filter

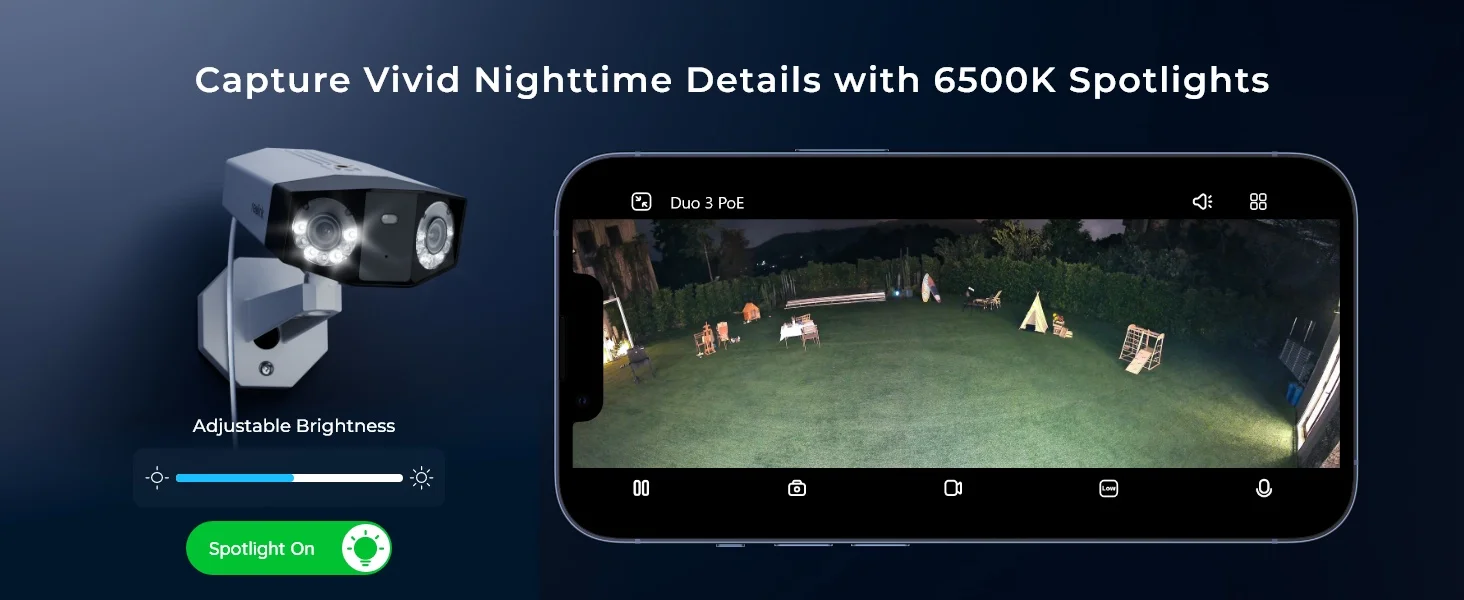

Color Night Vision: Spotlight: 8pcs/5W/6500K/560 Lumens

Field of view: 16MP Cam: H 180°/ V 55°;8MP Cam: H 180°/ V 60°;

Audio: With mic & speaker for 2-way audio

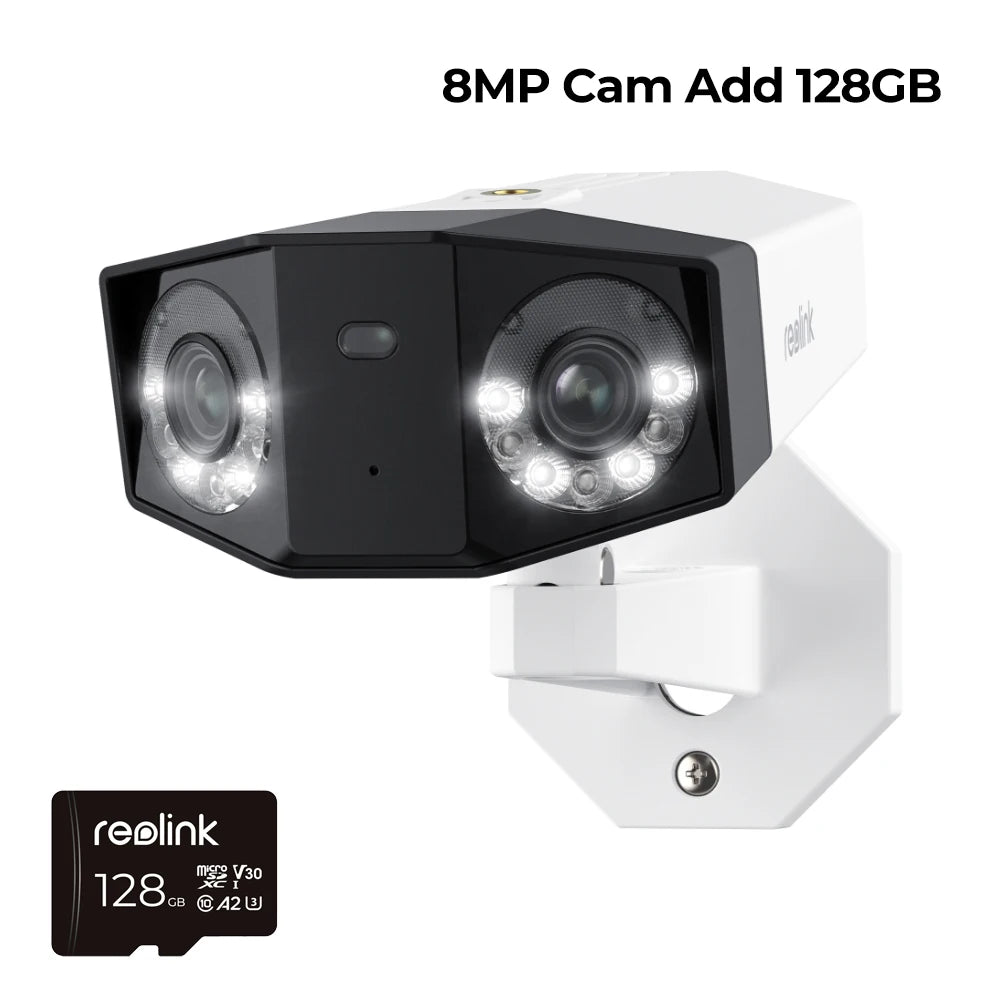

Local storage: Max. 256 GB (Micro SD card)

Number of lenses: Two

Waterproof: 16MP Cam: IP67; 8MP Cam: IP66

Zoom: 10X Digital zoom only

Smart features: Person/vehicle/animal detection; Motion detection

Record Mode: Motion-triggered recording (default); scheduled recording, 24/7 recording

Time Lapse: Yes

Smart Home: Google Assistant; Alexa

Operating Temperature: -10°C~+55°C (14°F~131°F)

Operating Humidity: 10% ~ 90%

Weight: 680g



Comparison of Dual-lens Surveillance Camera

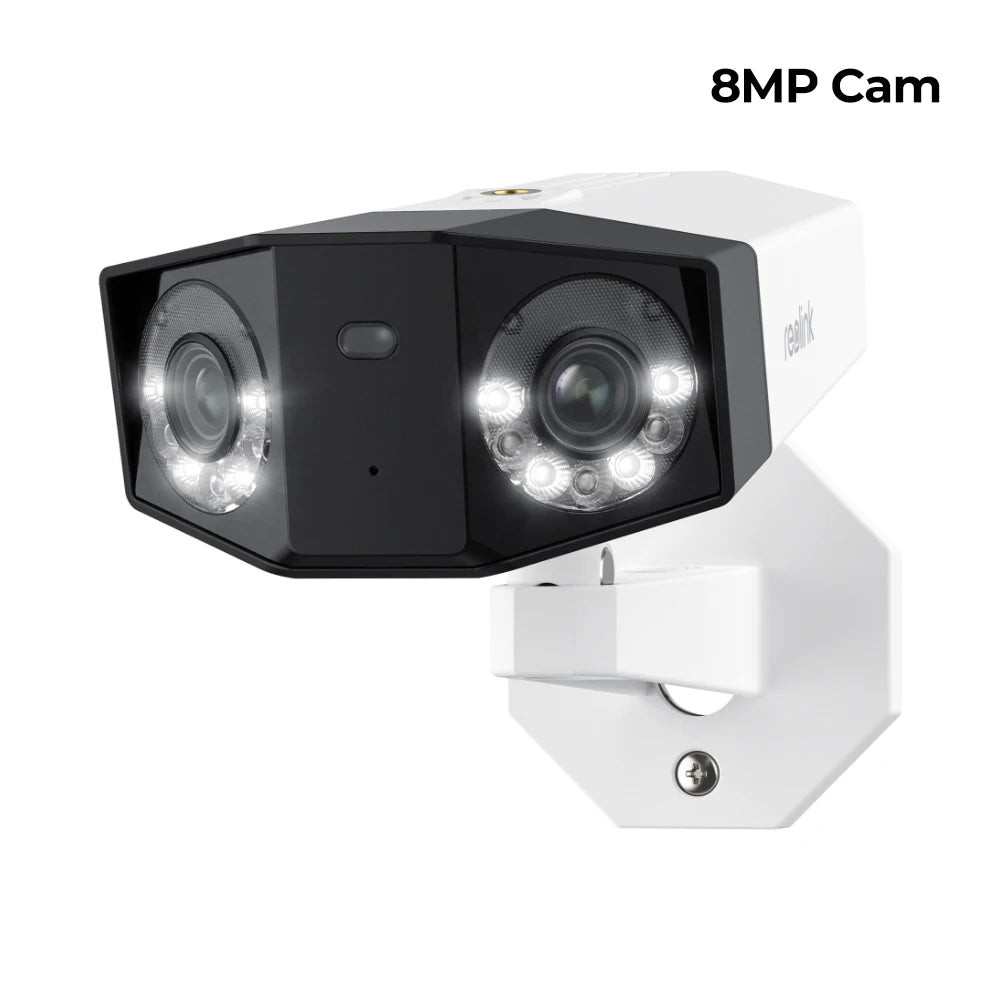

Model Name	8MP Cam	16MP Cam
Resolution	4K 8MP (4608 x 1728)	16MP(7680 x 2160)
Image Sensor	1/2.7" CMOS sensor
Lens	f=3.2mm fixed/F2.0	f=2.8mm/F1.6
Frame rate	Max. 20 FPS
Video Format	H.265
Field of view*	H: 180º;V: 60º	H: 180º; V: 55º
Power supply method	PoE (Power over Ethernet)
Power	DC12V/2A & PoE (IEEE 802.3af)
Ethernet	One 10M/100Mbps RJ45
Local storage	microSD card slot (Max. 256GB)
Number of lenses	Two
Night vision	Color night vision(Spotlight: 8pcs/5W/6500K/560 Lumens)
	30 meters (LED: 6pcs/20mil/850nm)
Audio	With mic & speaker for 2-way audio
Zoom	10X Digital zoom only
Smart Alarm	Motion detection; person detection; vehicle detection; animal detection
Record Mode	Motion-triggered recording (default); scheduled recording, 24/7 recording
Smart home	Google Assistant; Amazon Alexa
Remote access & alerts	√	√
Continuous recording	√	√
Time lapse	√	√

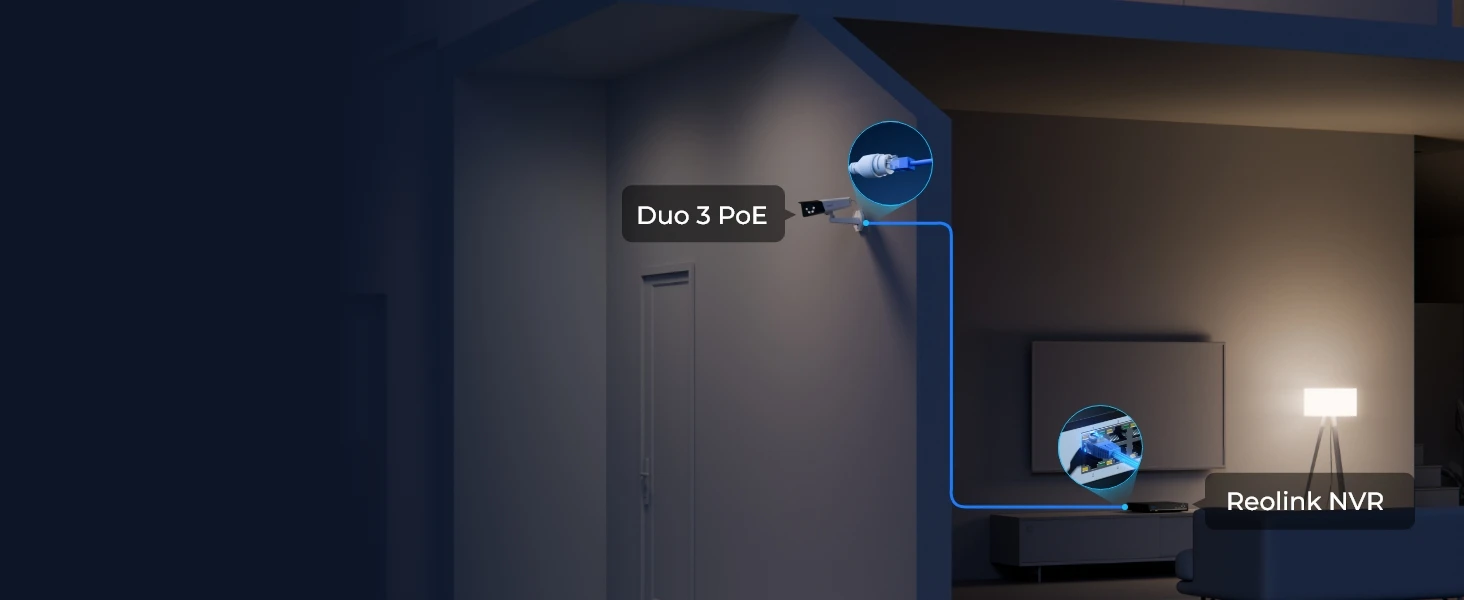

Works with Reolink PoE NVR	√	√
Works with Reolink IoT devices	√	√
FTP	√	√
RTSP	√	√
Frame Rate	Main stream: 4fps - 20fps (default: 20fps) Sub stream: 4fps - 20fps (default: 20fps)
Code Rate	Mainstream: 3072-10240Kbps (default: 8192kbps) Substream: 256-2045Kbps (default: 1024kbps)
Browsers Supported	Edge, Chrome, Firefox, Safari
OS Supported	PC: Windows, Mac OS; Smartphone: iOS, Android
Protocols & Standards	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P	HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP,ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Recommended application scenarios	Room, courtyard, store, office, restaurant, etc.
Temperature	-10℃~+55℃ (14°F~131°F)
Humidity	10%~90%
Waterproof	IP66	IP67
Dimension	195x103x56 mm
Weight	680g
Note	*The data on the pages above are obtained under specific test conditions.

(The Duo 2 PoE just support 8MP)*The 16MP cam compatible Reolink NVR: Hw_N5MB01, Hw_N6MB01 or Hw_N7MB01 under the latest firmware version for 16MP. But for Hw_H3MB18, Hw_N3MB01 or Hw_N2MB02, previews in 6MP resolution on the monitor UI. Not support the third-party NVR.
