SPECIFICATIONS

Brand Name: PANOEAGLE

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

Supported Operating Systems: Windows 98

Lens (mm): 2.8mm

Style: Dome Camera

Connectivity: IP/Network Wired

Installation: Ceiling

Minimum Illumination(Lux): 0.01Lux@F1.2(AGC ON), 0Lux IR on

Color Night Vision: no

Megapixels: 8MP

Storage: 256GB

Video Compression Format: MJPEG

IR Distance(m): 20-30m

Certification: CE

Color: WHITE

Alarm Action: Local Alarm

is_customized: Yes

Model Number: YC2285I-ISU YC2265I-ISU 2.8MM

Supported Mobile Systems: IOS

Smart home platform: other

AI Functions: Human Detection

IP Rating: IP66

Special Features: Vandal-proof

TF Card: None

Power Supply(V): 12 VDC ± 10% &POE

Audio Output: Two Way Audio

Power Consumption(W): 8 W

Sensor: CMOS

Power Supply: With POE

Viewing Angle : 100°

Image Sensor: 1/3" Sony CMOS

Max Resoltuion: 8megapixels 6megapixels

Fix Lens: 2.8mm

Smart Phone: iPhone, iPad, Android, Windows Phone

Power: DC12V/PoE48V (802.3af)

Audio: Two-way Audio

Optional Function: PoE, Audio, Human body detection, vehicle detection

Protocol: SD card slot (Max. 256GB)

Network Services: P2P

Web: IE , Firefox (32bit esr), etc.

Media: CMS, Android, IOS

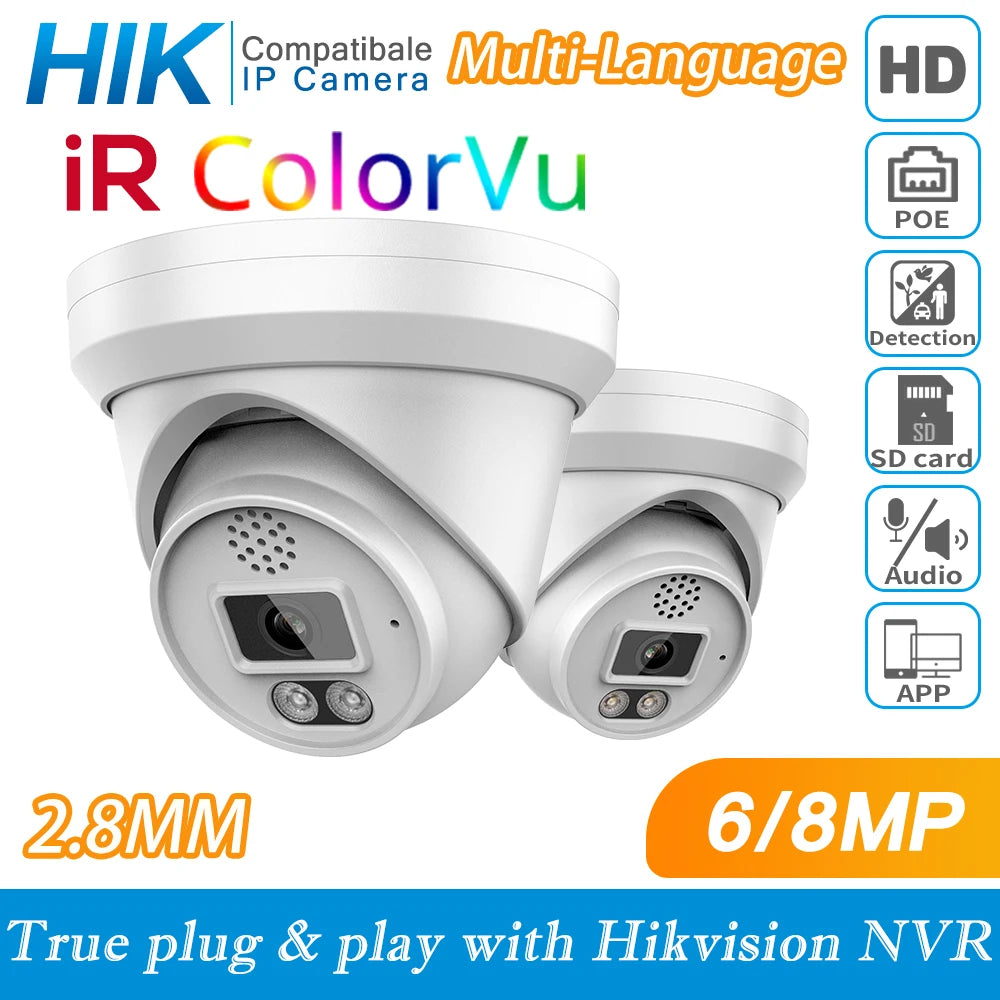

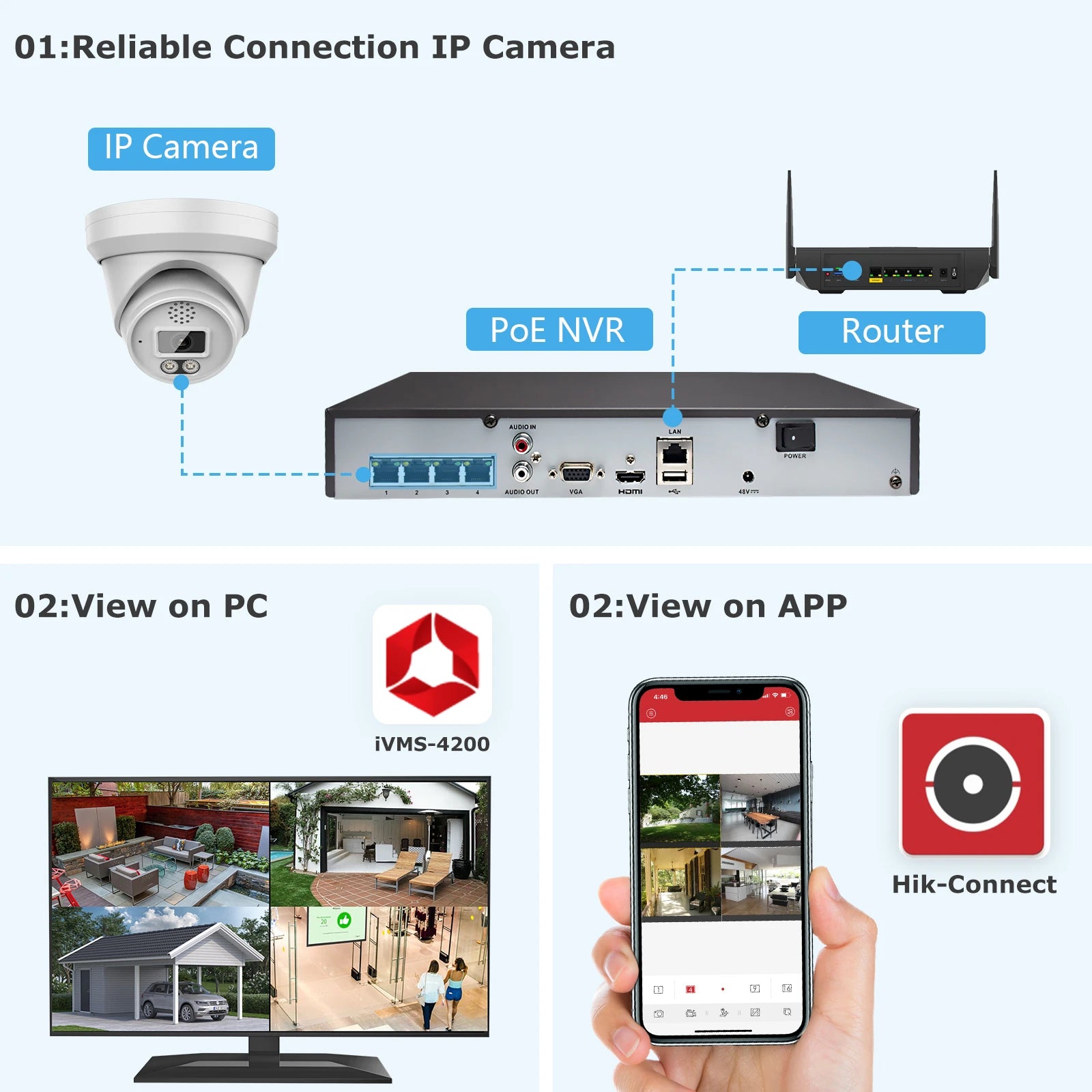

SUPPORT ON-ViF & HIKIVISION PROTOCOL:This 8MP PoE dome ip camera compatible with Hikvision, true Plug & Play with Hi-kvision NVR. And support ON-VIF protocol, compatible with most third party NVRs like Dahua NVR; work with Blue Iris, iSpy, NAS Storage, IE, Firefox 32bit ESR, PC Client & Mobile APP remote access. Support user authentication, video data encryption; Support Alarm Snapshot to Email and FTP. With RJ45 100mbps network port, and PoE 802.3af.(PoE Injector or Switch Not Included)



SMART AI DETECTION & TWO WAY TALK:This PoE IP Camera features smart human/vehicle detection.It will send instant alert precisely when detects human shape and vehicles,which will reduce unnecessary alerts by small animals or any other irrelevant objects.And it builds in a noise cancellation speaker & microphone, which allows you to talk with the people or warn the unfriendly visitors while watching live streaming.This effectively improves the usability and security of the camera



H265+,IP66,120dB: The 8MP PoE dome ip camera adopts H.265+ format to provide superior improvements in image quality and bandwidth.This latest video compression format allows to reduce file size without affecting the file quality. For superior around-the-clock surveillance, you can count on the camera's 120dB Wide Dynamic Range that gains better image in diverse lighting conditions.Due to the IP66 weatherproof, it shows strong ability to withstand harsh environments,fiting indoor or outdoor use.



SMARTER SECURITY, RELIABLE SERVICE:Receive motion alert notifications and review footage via your smart phone with the DANALE app. Playback and record professionally on a PC using the LMS app. Works with Cloud remote video storage, MicroSD card (Up to 256GB), Hikvision NVRs, and NAS, FTP, IE, Firefox(32bit esr).

>APP:DanaleIOS,Android, support download by QR codeIf the camera needs to be added to the NVR, use the NVR APP management

>Search Tool:SADP / AjDevTools modify the default ip address and password

>Retset Tool:AjDevTools / Internet Explorer

>Default IP:192.168.1.110

>Username:admin

>Password:123456

>>> Notice : This camera is NOT HIKVISION ORIGINAL , is Hikvision Compatible , can plug & play with Hikvision NVR, support most of the other brands NVR that support On-Vif protocol,and the camera can be worked with most of security monitor software, like Blue Iris, iSpy, VLC , and so on

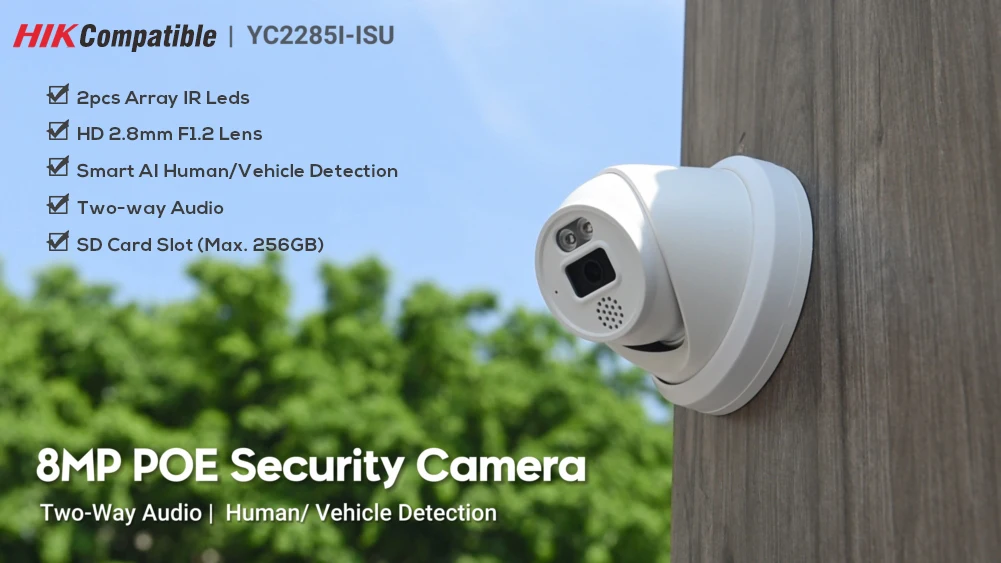

IR:YC2265I-ISU-/YC2285I-ISU

>6MP:1/3" CMOS sensor8MP:1/2.8" Sony CMOS sensor

>6MP:6MP realtime resolution 3072x20488MP:4K resolution 3840 x 2160P

>Low illumination 0.01Lux

>Day/Night, AWB/MWB,BLC, HLC, 2D/3D-DNR,Shutter, IR-CUT

>Multiply Style OSD Overlay,Motion Detection, Privacy Mask

>RTSP and O-N-V-I-F 17.06 compatible with many third-party NVR

>Smart264/Smart265 dual-stream media server

>Easy-to-use P2P Cloud service

>Support Alarm Snapshot to Email and FTP

>Multiply WEB browser IE,Firefox 32bit ESR, PC Client, Mobile APP remote access

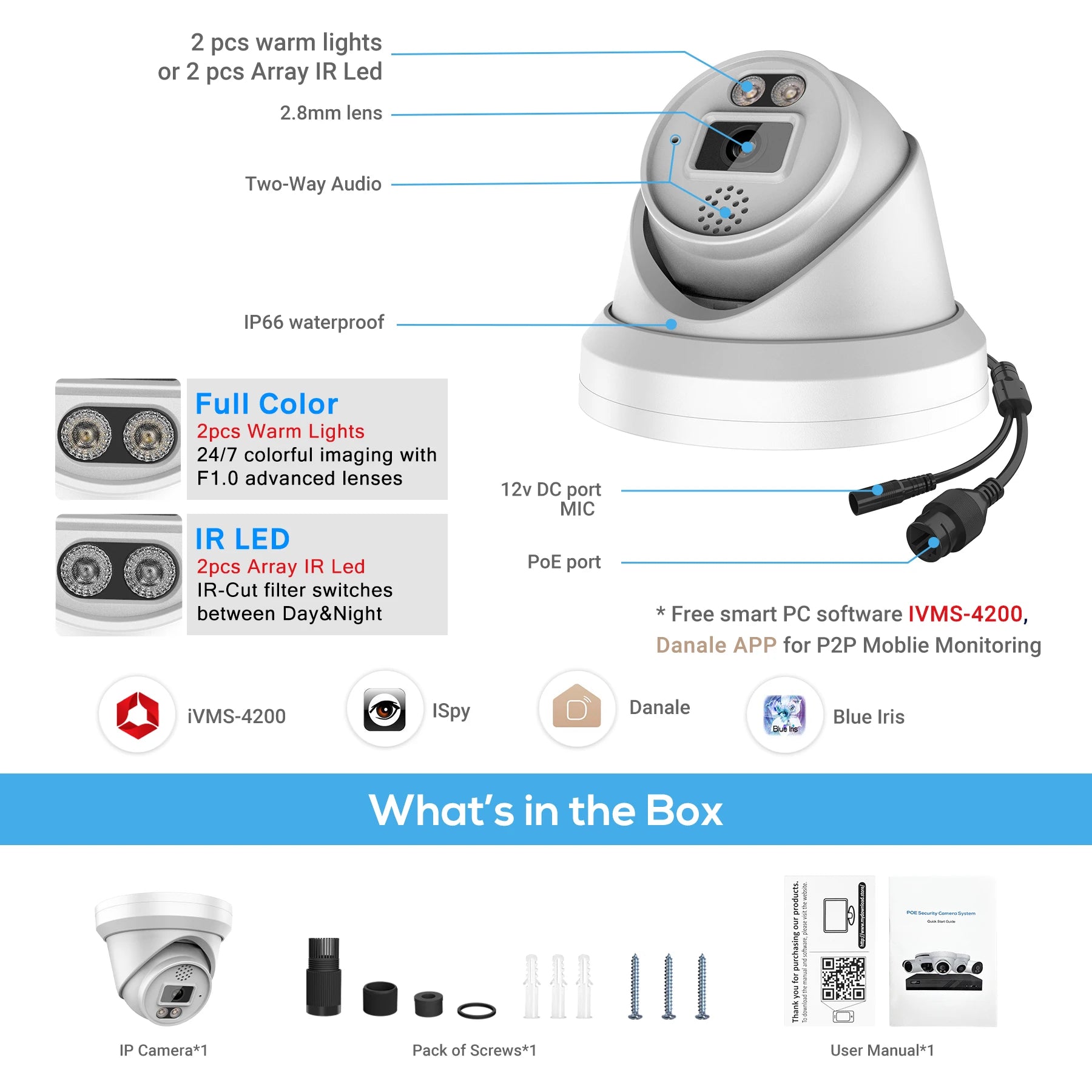

>RJ45 100mbps network port, IEEE802.3af PoE

>Strong water-proof housing, IP66

>2 pcs Array IR Leds, IR distance 20-30 meters

>2.8mm fixed lens

>Human body detection, Vehicle detection
