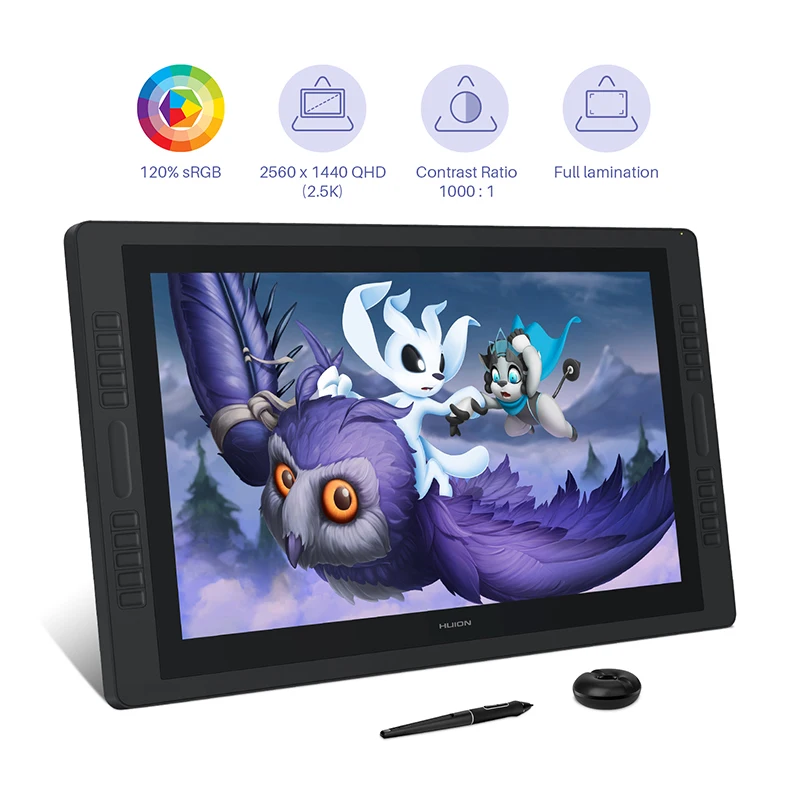

Huion Kamvas Pro 24 Graphic Tablet Monitor .
Huion Kamvas Pro 24 Graphic Tablet Monitor .
SPECIFICATIONS
Brand Name: HUION
Tablet Width: 391mm
Tablet length: 659mm
Pressure Levels: 8192
Screen Size(diagonal): 22"
Package: Yes
Type: Pen Tablet Monitor
Resolution Ratio: 5080lpi
Type: Digital Tablets
Screen Resolution: 2560 x 1440
Certification: CE
Panel Size: 23.8inch (Diagonal)
Resolution: 2560 x 1440(16:9)QHD
LCD Type: IPS
Active Area: 526.85 x 296.35mm
Contrast Ratio: 1000:1
Response Time: 14ms
Gamut: 120% sRGB
Display Color: 16.7M(8bit)

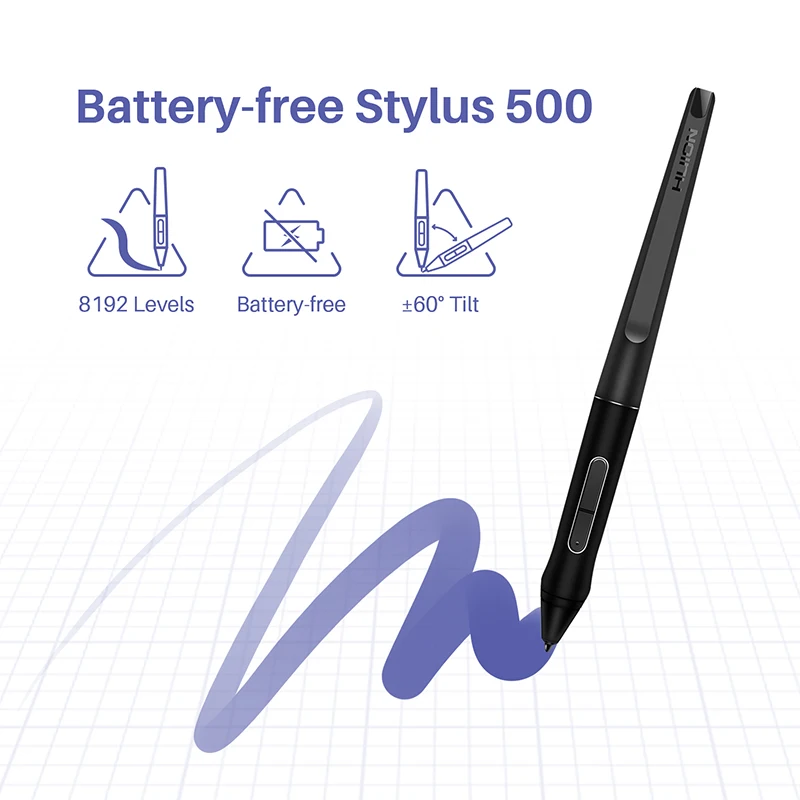

Pen Technology: Battery-Free Electromagnetic Resonance
Pen Resolution: 5080LPI
Pressure Level: 8192 Levels
Sensing Height: 10mm
Report Rate: 266PPS
Tilt: 60
Finger Touch: Dual Touch Bar
Digital Pen: PW517
Input Voltage: AC 100-240V, 50/60Hz
Output Voltage: 12V 3A

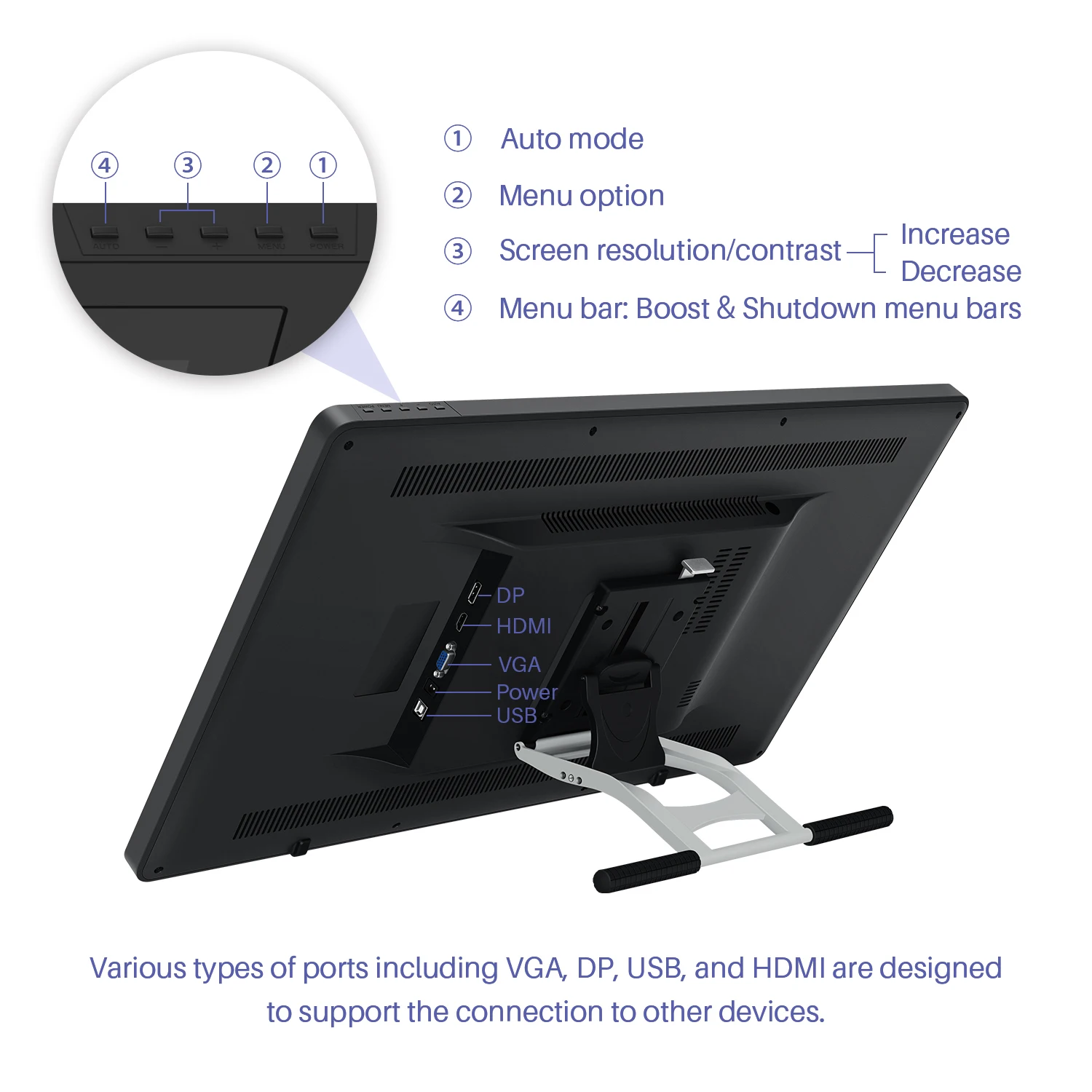

Video Interface: HDMI/DP/VGA
Press Keys: 20 Programmable Press Keys
Dimension: 659 x 391 x 25mm
Net Weight: 6KG
Colour: Black
Vesa: 75*75mm, 100*100mm
OS Support: Windows 7 or later, macOS 10.12 or later
Surface Finish: Anti-glare etched glass
Full Lamination: YES
2.5K resolution
The first Huion pen display with 2.5K resolution. Higher resolution helps to present the most refined details.
·Higher resolution means fit in more pixels into a same area. It can shows clearer and sharper details even when you enlarge the image to a very large size.

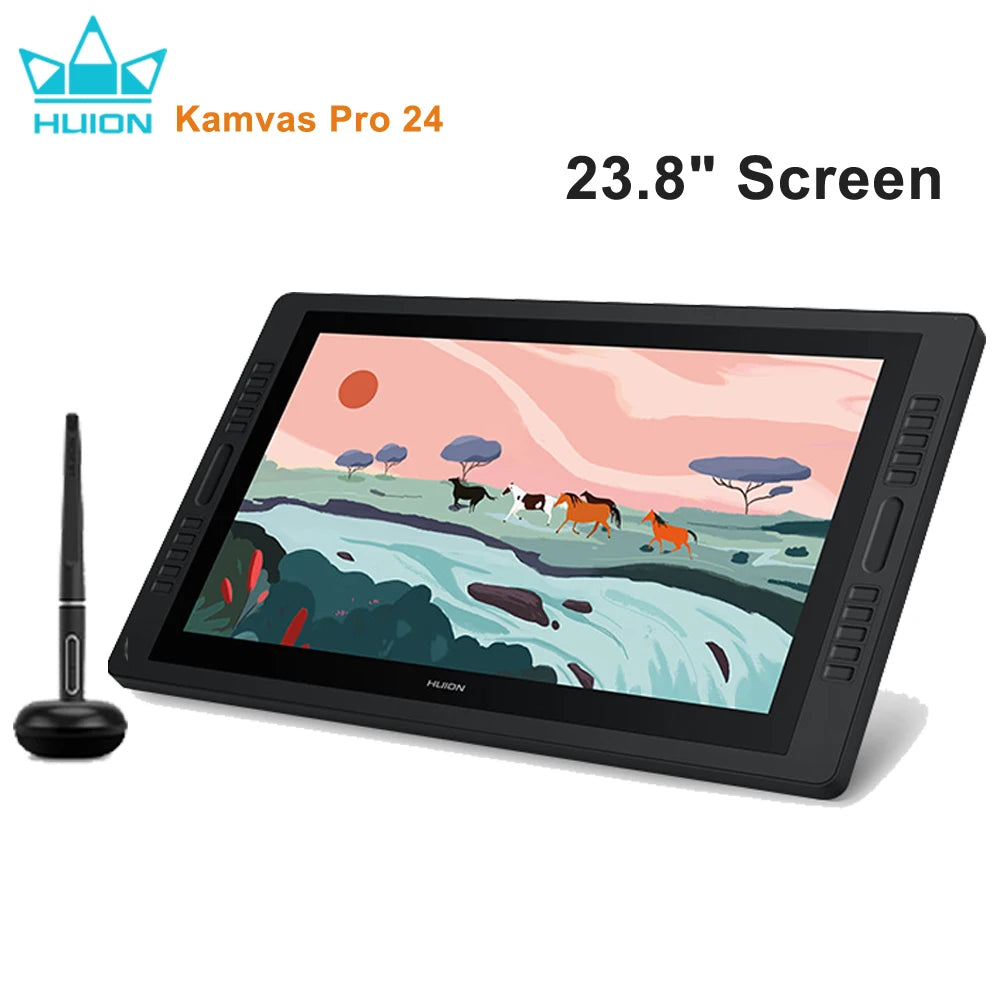

24” pen display
By far the largest size of Huion pen display.
larger screen size brings a larger active space for drawing, you can also place your references on the same screen for better productivity.

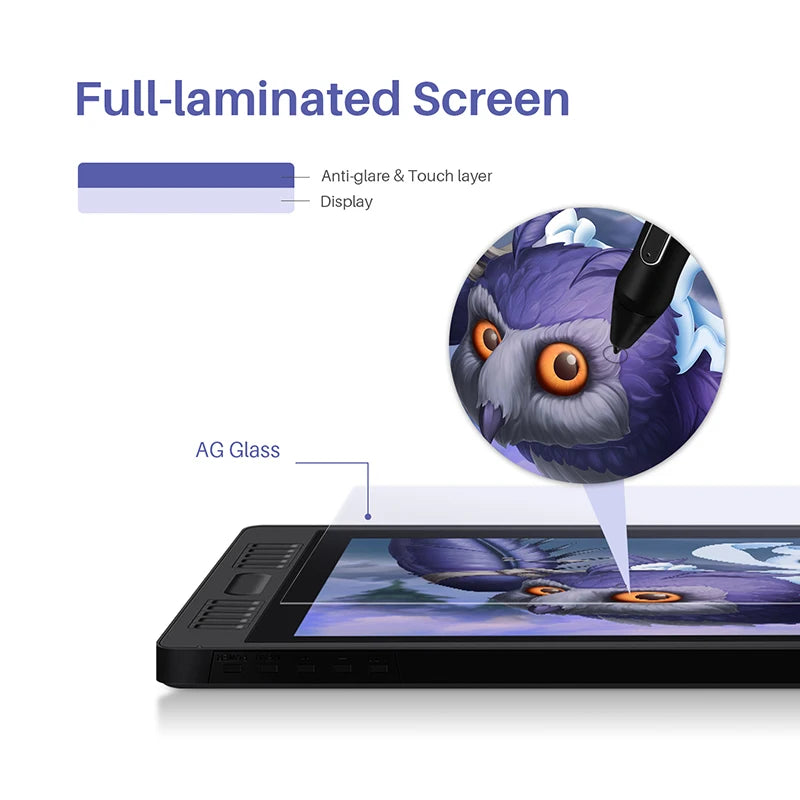

Full-lamination screen
Full-lamination screen has advantages of less cursor offset and better visual experiences.
Details of full-lamination technique:
1. The OCA glue is evenly applied to the whole screen which eliminate the air gap between protection glasses and LCD screen.
2. Eliminate the air gap means eliminate the space for light bounce. Lights can transmit through the screen smoothly which increase visual experience as well as reduce cursor offset.
Chemically Etched glass
Chemically Etched AG glass has the advantage of anti harmful glare and realistic pen-on-paper experience.
Details of Chemically Etched glass:
1. Screens are placed into the special acid for etching. The etching process apply special grains and textures on the surface of screen.
2. ·The etching process increase wear and corrosion resistance of the screen.
3. ·The grains and texture brought by etching process cause diffuse reflection effect and eliminate the harmful glare.
4. ·The texture of the glass increase the Coefficient of friction, which provide a realistic pen-on-paper experience.
Specifications

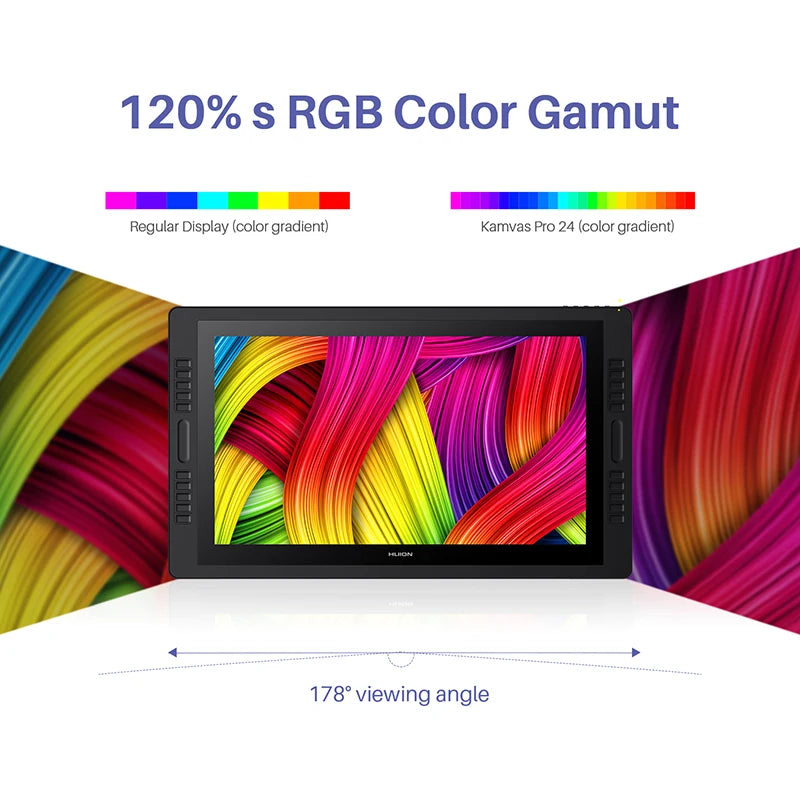

·120% sRGB≈92% Adobe RGB≈88% NTSC Color Gamut

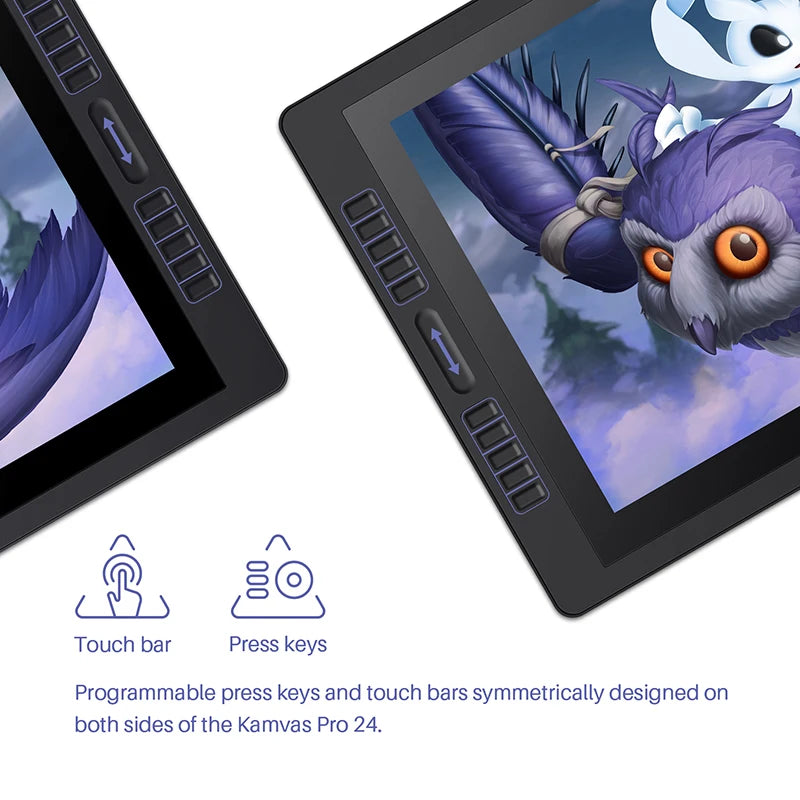

·20 customizable press keys and 2 touch bars are located on both sides of the display
·8192 pen pressure levels
5080LPI
·266 PPS
·±60° tilt support
·178°viewing angle
·Windows/MacOS compatible
