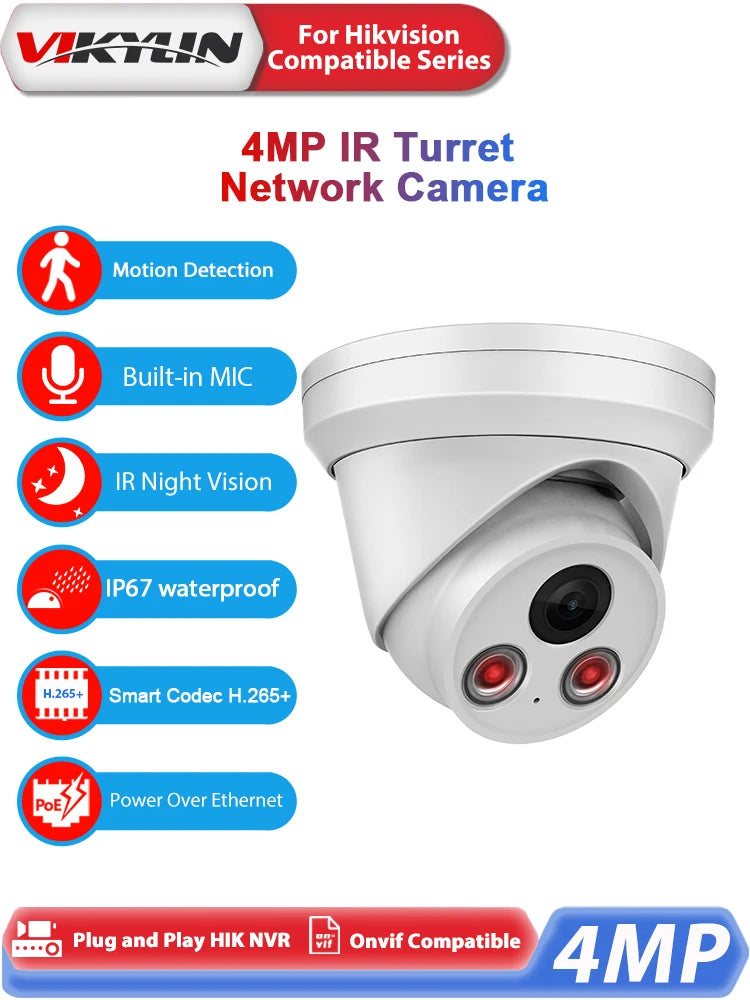

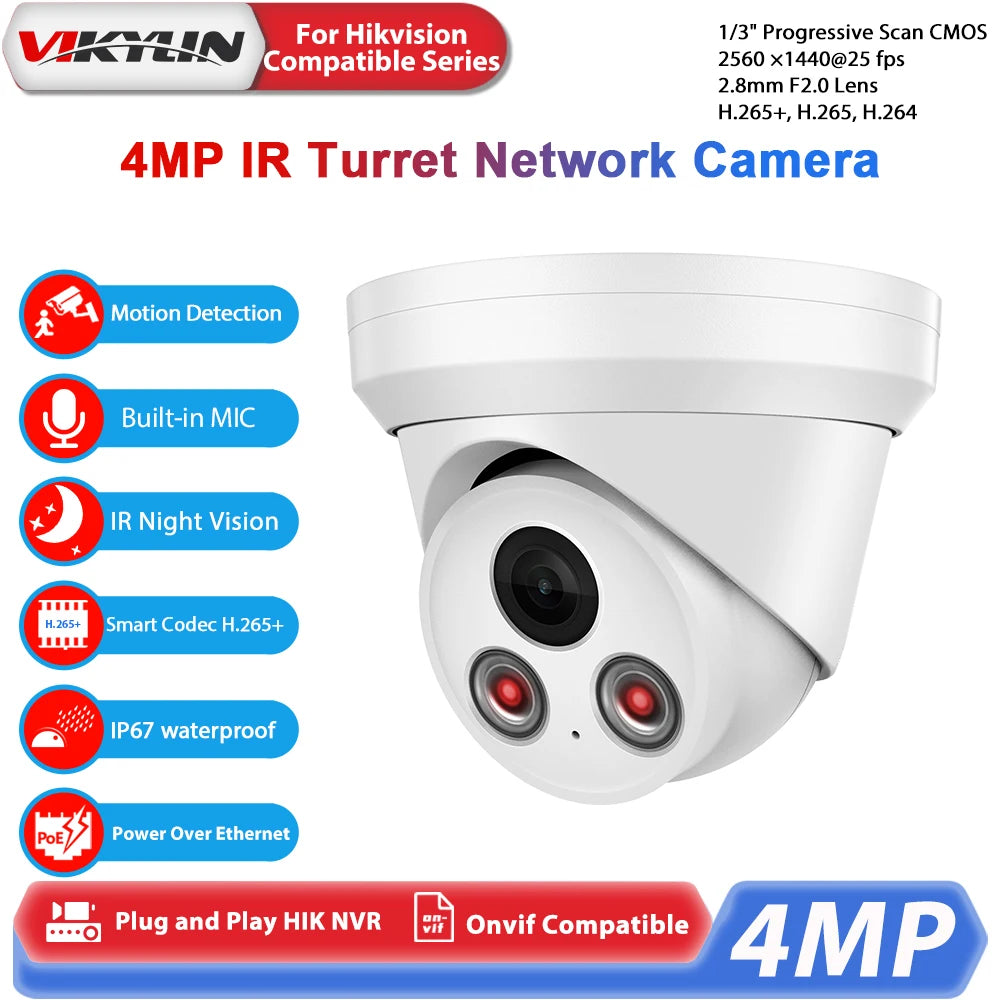

Vikylin 4MP IP Camera Motion Detection .

Vikylin 4MP IP Camera Motion Detection .

$50.99 USD
$0.00 USD $50.99 USD
Sale Sold out
Shipping calculated at checkout.
Sensor Size
Ships From

SPECIFICATIONS



Brand Name: VIKYLIN





High Definition: 4.0 Megapixels

Hign-concerned Chemical: None

Supported Operating Systems: Windows 7

Supported Operating Systems: Mac OS

Supported Operating Systems: Windows 8

Supported Operating Systems: Windows 10

Lens (mm): 2.8mm

Style: Turret Camera

Connectivity: IP/Network Wired

Installation: Ceiling

Minimum Illumination(Lux): Color: 0.01lux @(F2.0), 0 lux with IR light

Scene: Indoor and outdoor

Color Night Vision: no

Megapixels: 4MP

Video Compression Format: H.265

Video Compression Format: H.264

IR Distance(m): 30m

Certification: CE

Certification: RoHS

Color: WHITE

Alarm Action: FTP Photo

Alarm Action: Email Photo

is_customized: Yes

Model Number: PG2345I/PG2347C HIK Compatible Camera

Supported Mobile Systems: Android

Supported Mobile Systems: IOS

AI Functions: Motion Detection

IP Rating: IP67

Special Features: Waterproof / Weatherproof

Digital Zoom: other

Power Supply(V): 12V DC

Power Consumption(W): < 10 W

Sensor: CMOS

Operating Temperature: -10°-60°

Shell Material: Metal

Power Supply: With POE

Optical Zoom: other

Image Sensor: 1/3" Progressive Scan CMOS

Min. Illumination: PG2345I Color: 0.01lux @(F2.0), 0 lux with IR light// PG2347C Color: 0.01lux @(F1.0), 0 lux with white light

Shutter Speed: 1/10 s to 1/10,000 s

Slow Shutter: Yes

Day & Night: PG2345I IR cut Filter/PG2347C Colorful Filter

Digital Noise Reduction: 3D DNR 2D DNR

WDR: 120dB

3-Axis Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Focal Length: 2.8 mm

Aperture: PG2345I F2.0 PG2347C F1.0

Focus: Fixed

FOV: 2.8 mm, horizontal FOV: 94°, vertical FOV: 68°, diagonal FOV: 122°

Lens Mount: M12

IR Light Range White Light Range: Up to 30 m

Smart Supplement Light: Yes

Video Compression: Main Sub-stream: H.265+/H.265/H.264

H.264 Type/H.265 Type/H.265+: High Profile/Main Profile/Base Profile

Smart Event: Human detection, Vehice detection

Basic Event: Motion detection

Linkage Method: Trigger recording: network storage, pre-record and post-record Trigger captured pictures uploading: FTP, Email Trigger notification: FTP, Email

Max. Resolution: 2560X1440

Main Stream: 50Hz 60Hz: 25@FPS(2560x1440),25@FPS(2304x1296),25@FPS(1920x1080,1280 x 720)

Sub-Stream: 50Hz 60Hz: 30 fps (720 x 480,640 x 480, 640 x 360, 480 x 480,480 x 360,CIF)

Image Enhancement: WDR/HDR/3D DNR/2D DNR/HLC/BLC

Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser

SVC: H.264 and H.265 and H.265+ encoding support

Day/Night Switch: Day/Night/Auto/Schedule

Network Storage: Support local storage and NAS (NFS, SMB/CIFS)

Protocols: HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P, DHCP,SMTP,RTMP

Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Built-in Microphone: YES

Reset Key: NO

On-Board Storage: NO

Operating Conditions: -30 °C to +85 °C, humidity 95% or less (non-condensing)

Web Client Language: 14 languages: English,Russian,German,Italian,Turkish, Korean, Japanese,Traditional Chinese,Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi

Power Supply: DC 12V 1A , 5.5 *2.1mm coaxial plug power PoE(802.3af) Max.7.5W

Protection Level: IP67-Each Camera has been tested waterproof

Material: Front cover:metal,body:metal,bracket:metal ring:plastic

Dimensions: Camera: 126 x 98 mm (4.96" x 3. 86")Package: 127 x 127 x 124 mm (5" x5" x 4.88")

Weight: Camera: 605 g (1.32 lb.)




ⓞ About camera

The IP camera is for Hikvision Compatible model, can plug and play with HIK NVR and Onvif, so please don't worry about the quality.
We are top agent of security system and more 10 years experience in this market, with Proffesional after-sale service and suggestion.



1.What is"Hikvision Protocl"?

Hikvision products all have Hikvision Protocl and it support Hikvision camera plug and play, make it easy to be install with Hikvision NVR.


2.What is"Hikvision Compatibile"?
  •  It mean this camera support plug & play with Hikvision NVR(Also Hikvision software).Please note, Just because a camera has the Hikvision protocol does not mean that the camera's smart features will also work on the NVR.
  •  You don't need to manual setting camera IP and password etc...
  •  Just plug in and camera will work!


3. When I installed the camera, How Can I find this camera?

download software:AJDevToolsRecommend

http://www.anjvision.com:8021/client/AjDevTools_V5.2.1_20210108.exe

Or SADP https://www.hikvision.com/content/dam/hikvision/en/support/download/tools/sadp/for-windows/v3-0-2-4/firmware/SADP-Tool-for-Window.zip

use this software search the camera.

username: admin

password: 123456

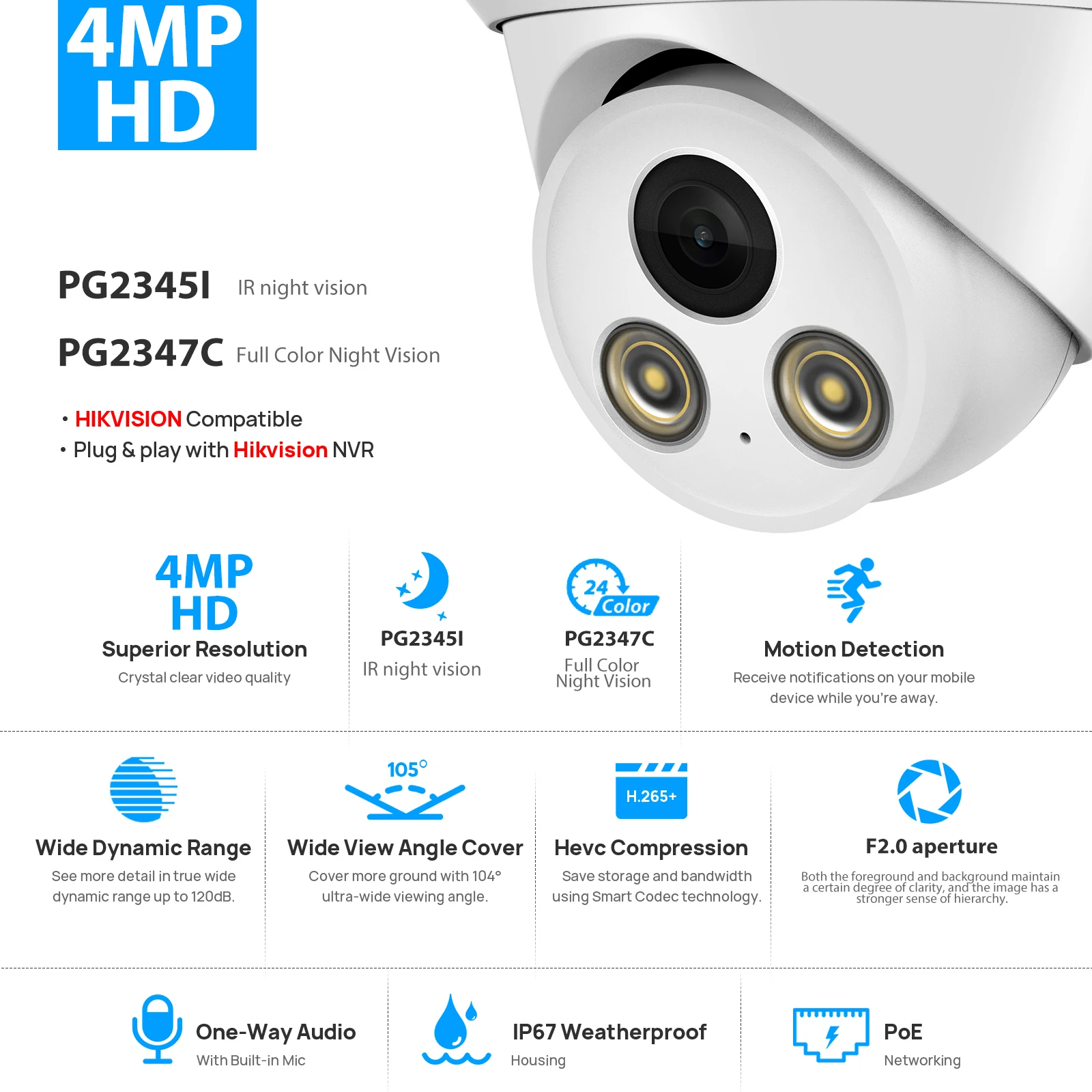

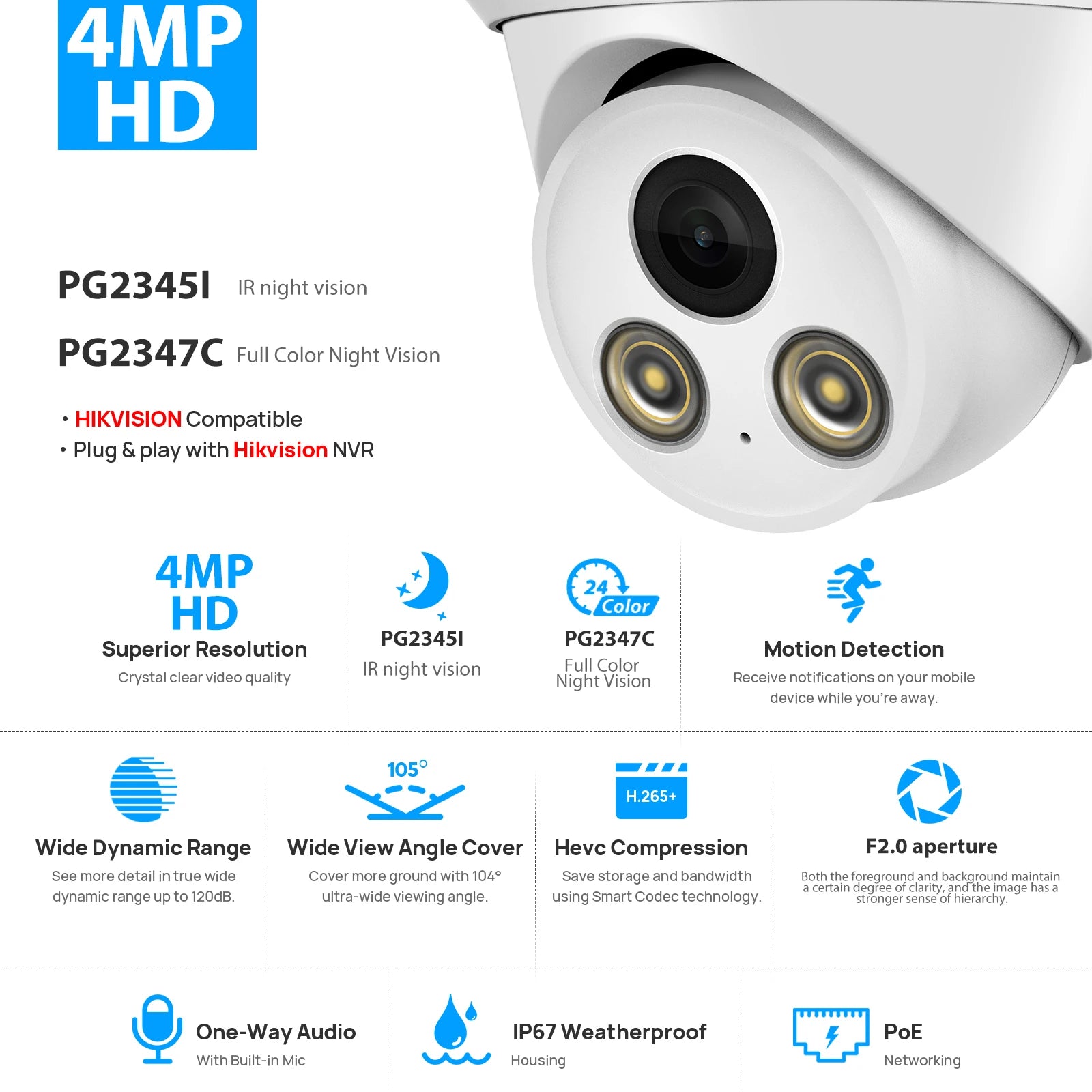

Vikylin HD Network Cameras - The New Choice for Security at a Cost-Effective Price


Vikylin's PG2345I and PG2347C network cameras are designed to protect your security with excellent performance and powerful features at an affordable price with superb value for money.
💥Selling Point 1: High Definition Image Quality
Both adopt 1/3” Progressive Scan CMOS, the PG2345I can realize 2560×1440@25fps, and the PG2347C also has high resolution. PG2345I is Color: 0.01lux @(F2.0), 0 lux with infrared light, and PG2347C is Color: 0.01lux @(F1.0), 0 lux with white light.
💥Selling Point 2: Powerful Lens and Features
Both cameras have fixed lenses, the PG2345I is a 2.8mm F2.0 lens and the PG2347C is a 2.8mm F1.0 super aperture lens. Equipped with image enhancement functions such as WDR/HDR/3D DNR/HLC/BLC to improve picture quality. Supports smart event detection such as human body detection, vehicle detection and motion detection.
💥Selling Point 3: Illumination and Regulation

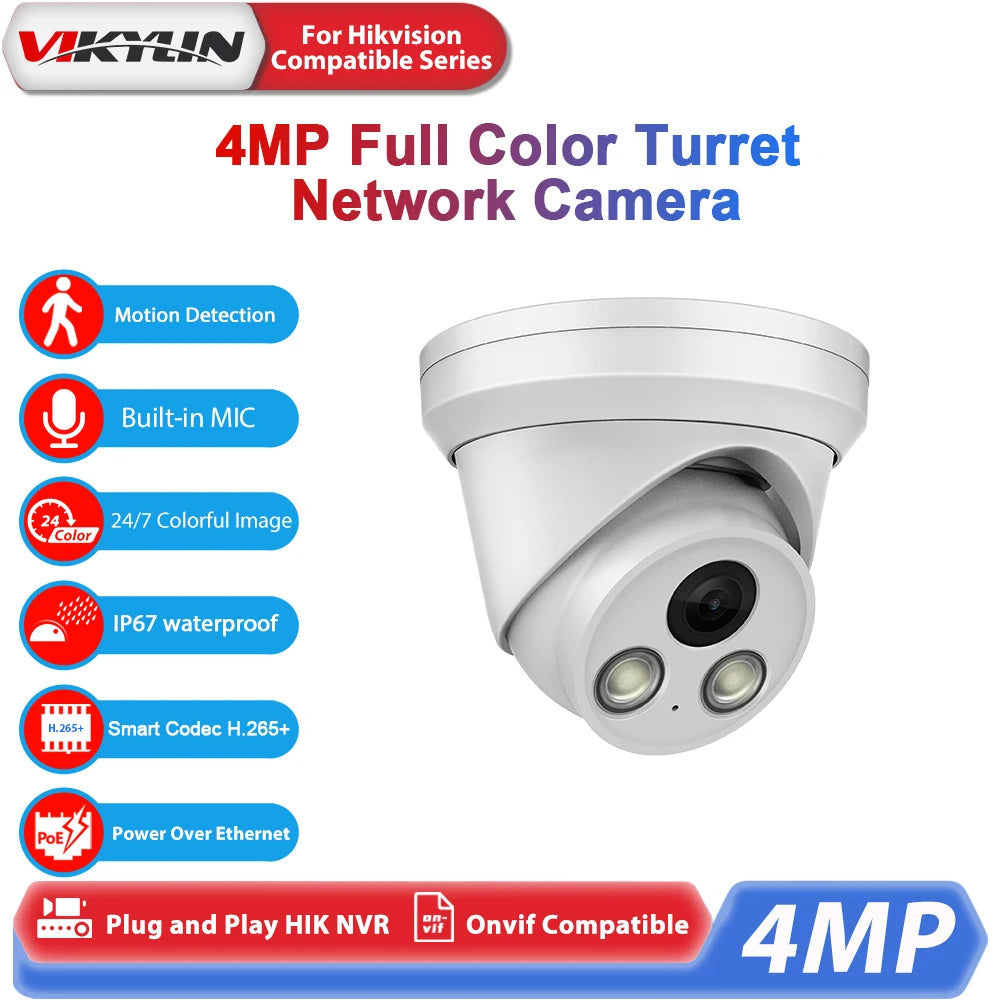

The PG2345I has an infrared light range of up to 30 meters and the PG2347C also has a white light range of up to 30 meters, enabling 24/7 full-color surveillance. And both support 3-axis adjustment, flexible to adapt to different installation needs.
💥Selling Point 4: Protection and Convenience

The protection level is IP67, waterproof and dustproof, adapting to various harsh environments. Built-in microphone, convenient for audio capture. Support a variety of protocols, such as HTTP, RTSP, DHCP, FTP, NTP, ONVIF, P2P, etc., convenient access to different systems.


No need to hesitate for the high price of surveillance equipment, Vikylin's PG2345I and PG2347C network cameras bring you a professional-grade security guarding experience at an affordable price. They are ideal for home, commercial and industrial environments.

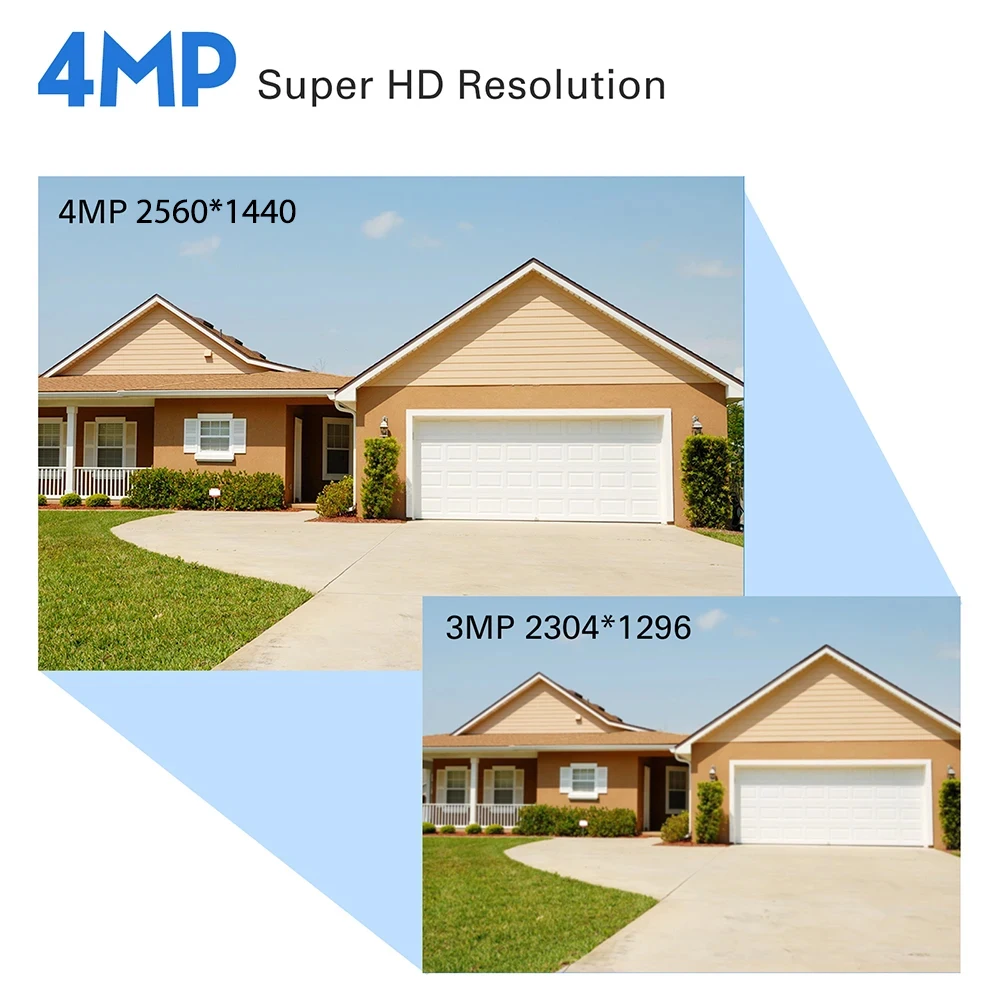

Super HD2K 4 Megapixel Resolution

The Camera Show Higher-Quality Images for both day and night vision, you can get exactly the details you need.


Audio Recording,One-Way Talk


Built-in waterproof microphone,designed for optimal noise cancellation and echo reduction, high quality audio performance. It can make preview and playback with sounds.

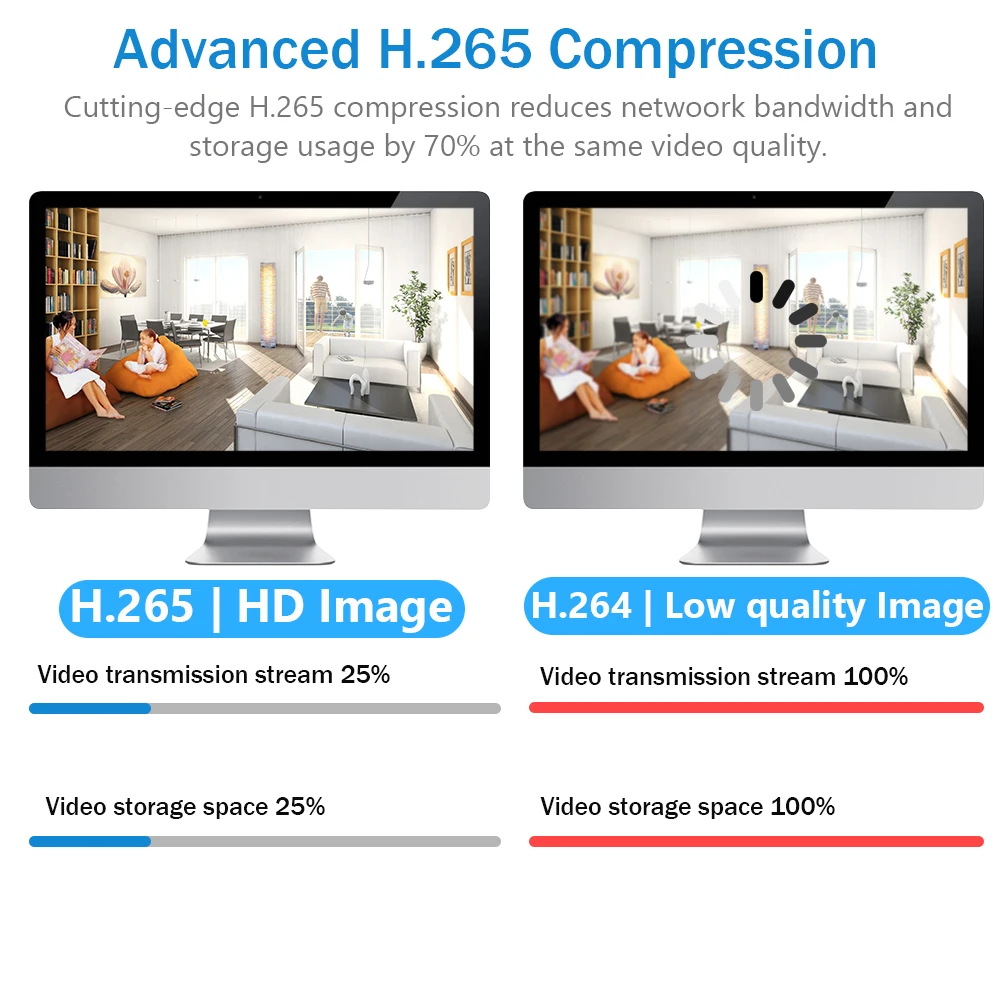

H.265/H.264


Dual-stream media server (Applicable to various bandwidth and storage environments)

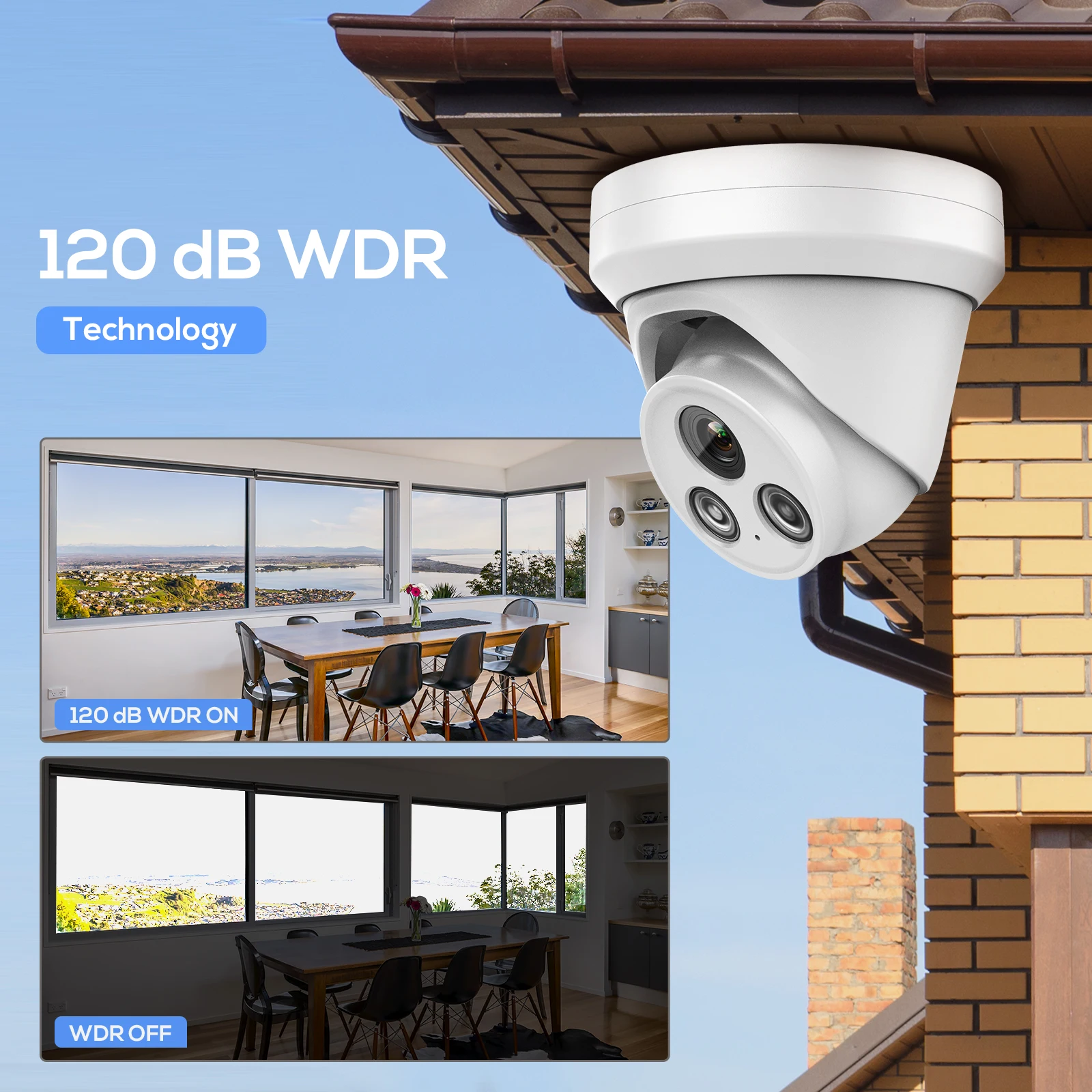

120dB WDR -Wide Dynamic Range



In conditions with very bright and dark areas, such as at an entrance door in an office building or an entrance way to an indoor parking garage or tunnel, a camera may capture over-exposed images in bright areas and under-exposed images in dark areas, which greatly affects image quality. A camera with WDR can help solve this issue. By combining images with short exposure and long exposure into one image, WDR technology captures both bright areas and dark areas clearly.

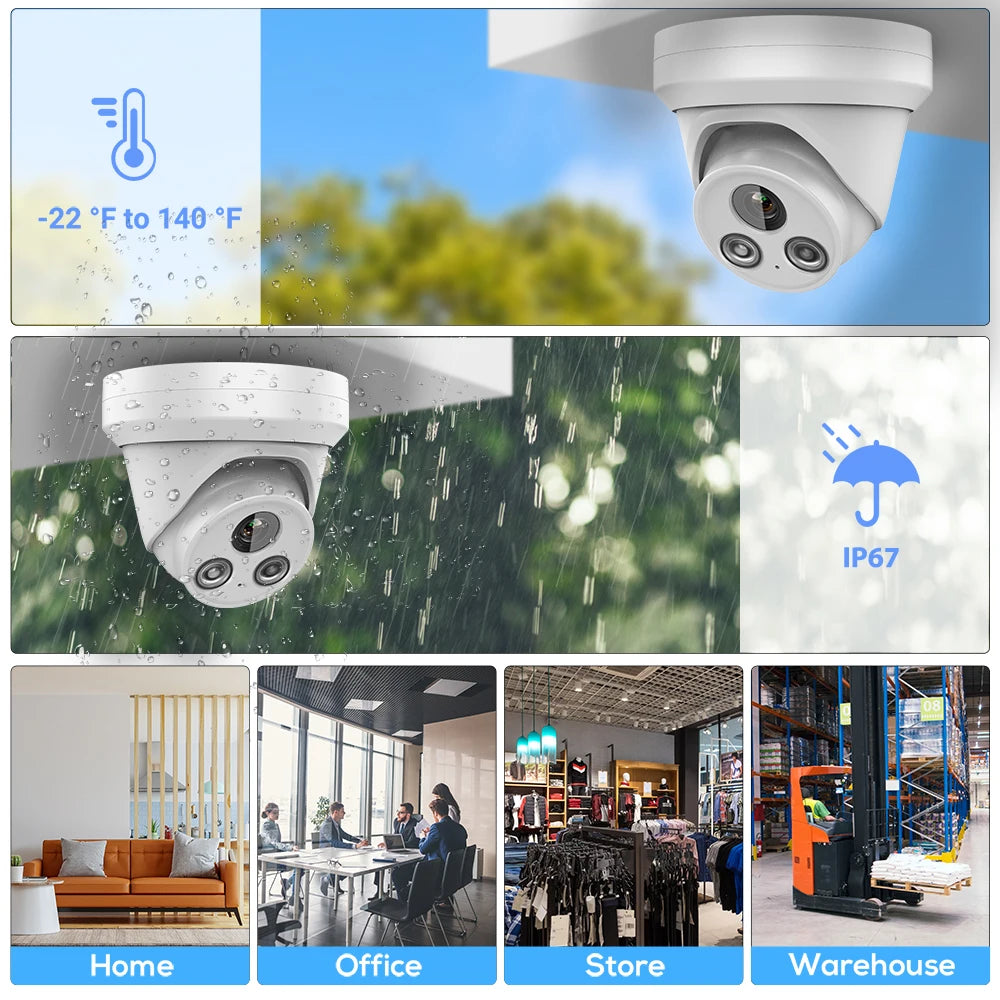

IP67 waterproof

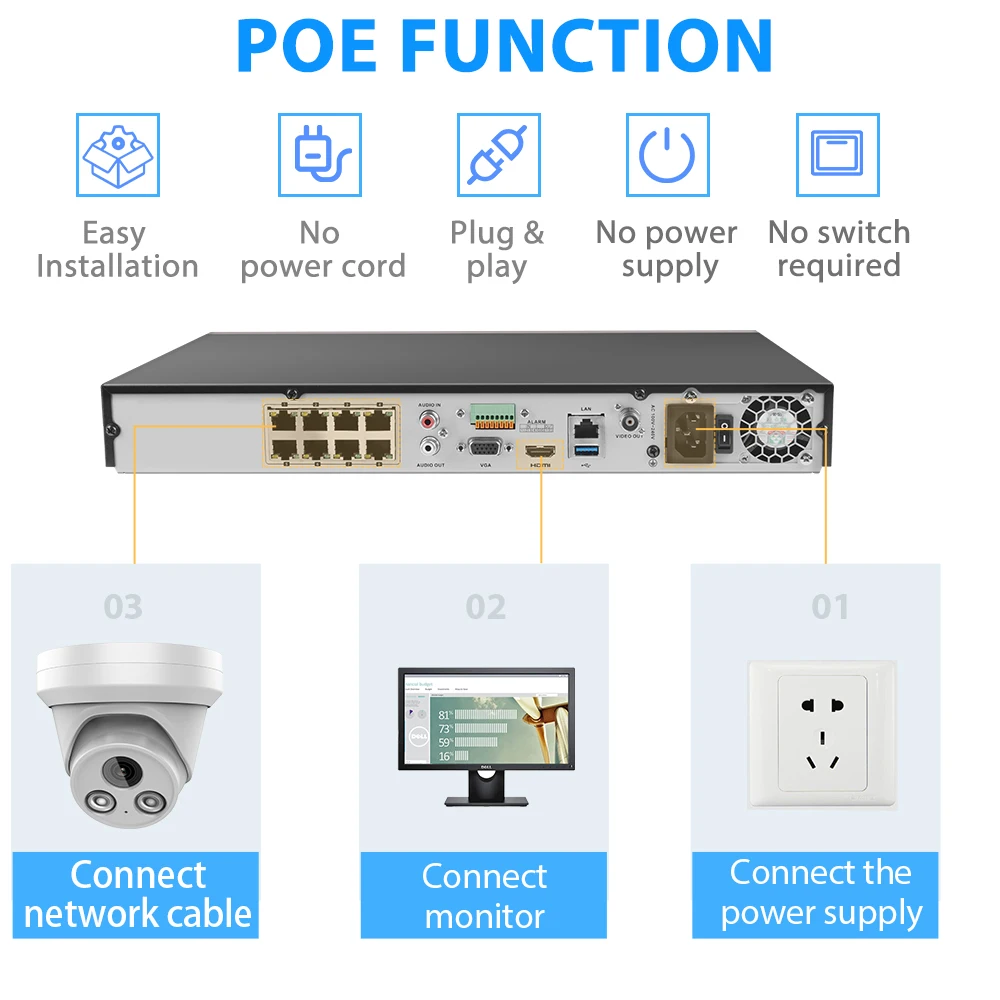

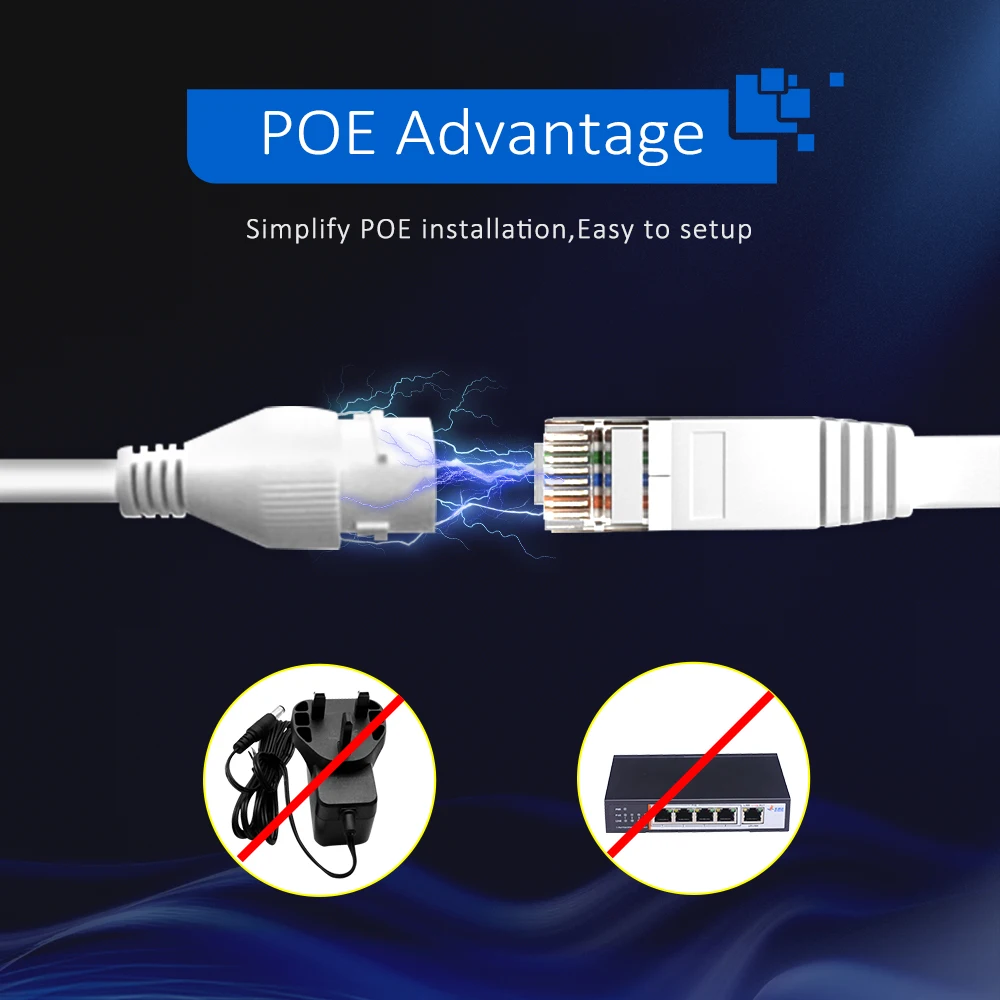

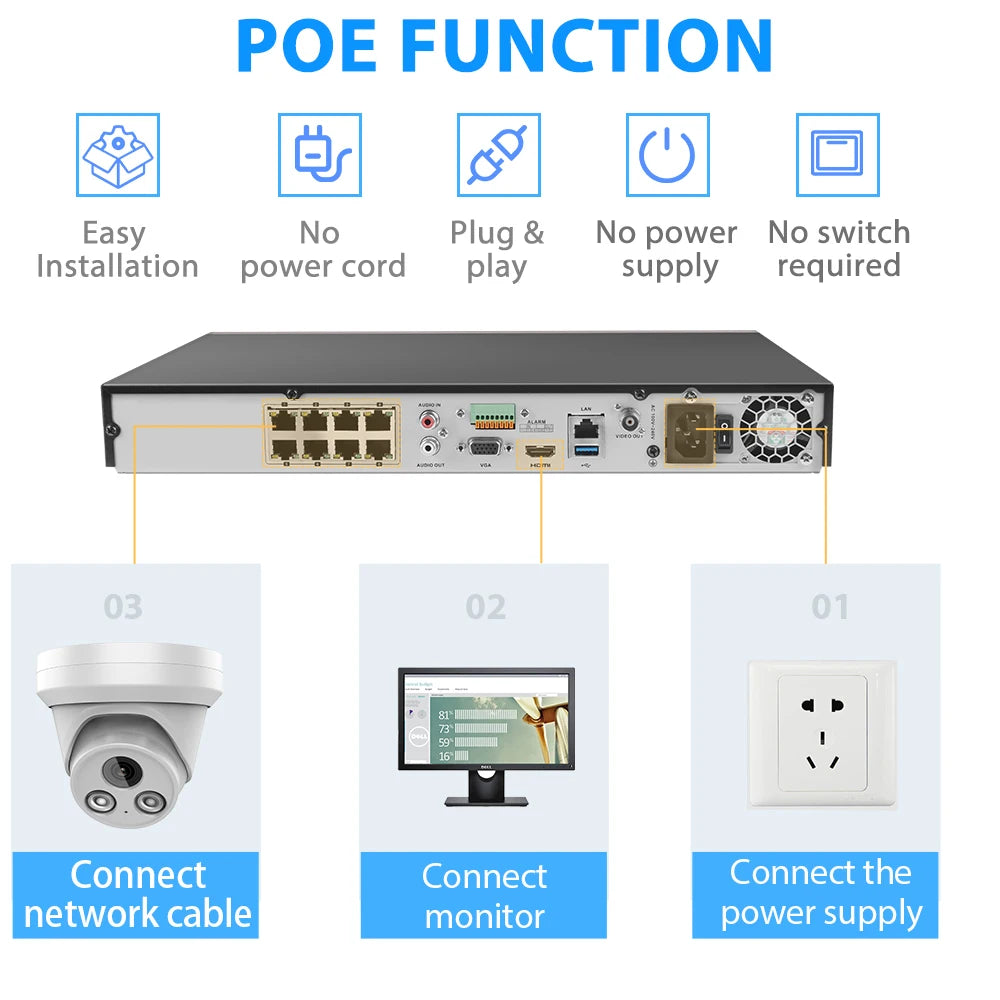

POE-Easy Setup, Even for a Beginner


(A real plug and play security! It features POE (Power over Ethernet), with a single cable connecting each IP camera to the NVR for both power supply and video and single transmission. Easy wiring - the wiring process can't be simpler for DIY enthusiasts and beginners)


Support P2P


(Multi web browser, PC Client, mobile APP remote access)
